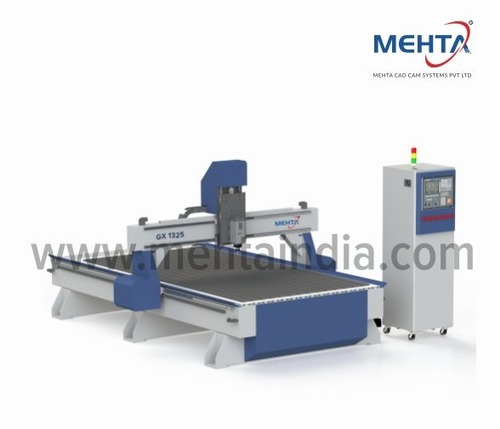

CNC Engraving Machine

Name: CNC Engraving Machine
Brand: MEHTA CAD CAM SYSTEMS PVT. LTD.
Price: 945000.00 INR
Availability: InStock

Price 945000.00 INR/ Unit

Get a Price/Quote

MOQ : 1 Unit

CNC Engraving Machine Specification

Plastic Processed
Acrylic, PVC

Connectivity Options
USB, Ethernet

Control System
DSP Control System

Operating Temperature
0C to 45C

Production Capacity
Up to 400 mm/min

Model No
CNCEG-1325

Noise Level
<75 dB

Frequency
50/60 Hz

Voltage
220 V / 380 V

Accuracy
0.02 mm

Motor Power
Stepper Motor, 3 x 3.5 Nm

Lubricating System
Automatic Lubrication

Power Rating
2.2 kW

Machine Type
CNC Engraving

Frame Type
Heavy Duty Welded Frame

Drive
Stepper Drive

Features
High Precision, Rigid Structure, User-Friendly Interface

Cooling System
Water Cooling

Product Type
CNC Engraving Machine

Technology
CNC (Computer Numeric Control)

Power Source
Electric

Operating Type
Automatic

Power
2200 W

Pressure
Adjustable, up to 15 bar

Surface Treatment
Powder Coated

Dimension (L*W*H)
1300 x 2500 x 1800 mm

Weight (kg)
950 kg

Color
Blue & White

Usage & Applications
Metal, Wood, Plastic, Acrylic Engraving

Transmission
Ball Screw & Linear Guide

Emergency Stop
Integrated Emergency Button

Spindle Speed
024000 rpm

Repeatability
0.01 mm

Supported File Formats
G-code, DXF, PLT

Maximum Load Capacity
350 kg

Ambient Humidity
595% RH (Non-condensing)

Software Compatibility
ArtCAM, UG, MasterCAM

Max Engraving Area
1300 x 2500 mm

Table Structure
Aluminum T-Slot

CNC Engraving Machine Trade Information

Minimum Order Quantity
1 Unit

Supply Ability
10 Units Per Month

Delivery Time
1 Months

About CNC Engraving Machine

We have been successful in bringing forth a broad selection of CNC engraving machines thanks to the steadfast backing of our extensive vendor network. The CNC engraving machines are precisely engineered at the suppliers' end using the highest grade raw materials, contemporary tools, and cutting-edge technology in accordance with international standards. These CNC engraving machines are in high demand on the market because of their exceptional performance, resistance to corrosion, excellent efficiency, and extended working life.

Product details

Country of Origin	Made in India
Brand	Mehta
Material	Mild Steel
Engraving Speed	30 mtr/min.
Model Name/Number	GX 1325
Motor Driver	Panasonic
Spindle Power	6 KW
Job Material	wood

FAQs:

What is CNC engraving machine?

Nowadays, engravings are created using either CNC or manual engraving equipment. The CAD-CAM software generates milling routes from the drawing and sends them to the control device, which are then processed by the CNC engraving machine. Compared to manual engraving, computer-based engraving is less prone to mistakes.

What is full form of CNC?

Computerized Numerical Control is the full name of this technology. A control system known as CNC is used to manage hardware powered by digital computers. It controls, improves, and records a machine that moves objects. It could be a milling machine, router, grinder, laser cutter, welder, etc.

Why is CNC used?

The production equipment is moved by pre-programmed software and code in this computerised manufacturing process. The use of complicated machinery such as grinders, lathes, and turning mills to cut, shape, and produce various components and prototypes is controlled by CNC machining.

Superior Precision and Rigidity

Engineered for accuracy, the CNCEG-1325 achieves repeatability of 0.01 mm and overall accuracy of 0.02 mm. Its robust build combines a heavy-duty welded frame with a ball screw and linear guide transmission, delivering stability even during demanding production runs. These features guarantee high-quality engraving results across metals, plastics, wood, and acrylics.

Versatile Applications and Software Compatibility

This CNC engraving machine accommodates a diverse range of materials-metal, wood, plastic, and acrylic-making it suitable for varied industries such as signage, decorative panels, and prototyping. The system is compatible with ArtCAM, UG, and MasterCAM, and supports G-code, DXF, and PLT file formats, enabling seamless integration into both new and established workflows.

Enhanced User Experience and Safety

Designed for operator convenience, the CNCEG-1325 features a user-friendly DSP control system and intuitive interface. The integrated emergency stop button, water cooling, and automatic lubrication systems prioritize safety and ease of maintenance, protecting the machine and operators during intensive use.

FAQ's of CNC Engraving Machine:

Q: How does the CNCEG-1325 ensure high engraving precision?

A: The CNCEG-1325 uses a combination of ball screw and linear guide transmission systems, achieving repeatability of 0.01 mm and engraving accuracy of 0.02 mm, supported by its rigid, heavy-duty frame structure.

Q: What materials can I engrave using this CNC machine?

A: You can engrave a wide variety of materials, including metal, wood, plastic, and acrylic. The machine is especially suited for applications involving acrylic and PVC, with a large engraving area suitable for both industrial and artistic tasks.

Q: When should I use the integrated emergency stop button?

A: The integrated emergency stop button should be pressed immediately if an unsafe condition arises or if you need to halt the machine quickly to prevent damage, ensuring rapid stopping and operator safety.

Q: Where can I connect my design files?

A: You can transfer design files to the machine via USB or Ethernet connectivity, supporting G-code, DXF, and PLT formats for maximum compatibility with common design software.

Q: What is the benefit of the automatic lubrication system?

A: The automatic lubrication system reduces maintenance time and prolongs machine lifespan by ensuring that moving parts are consistently and adequately lubricated without manual intervention.

Q: How is the engraving process managed and monitored?

A: The process is managed using a DSP control system, offering a clear, user-friendly interface for monitoring and adjusting parameters such as spindle speed, pressure, and operating modes during operation.

Q: What advantages does the water cooling system provide?

A: The water cooling system helps maintain optimal operating temperatures during extended engraving operations, preventing overheating and contributing to maximize spindle performance and durability.
