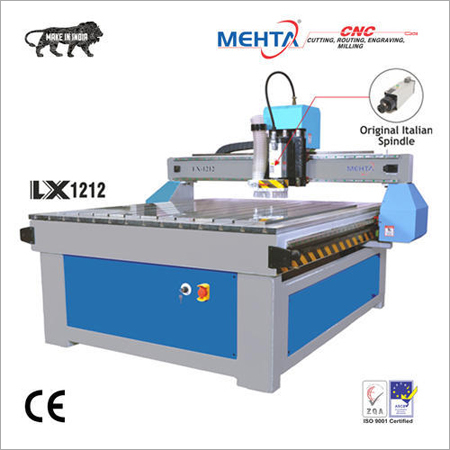

CNC Router

Name: CNC Router
Brand: MEHTA CAD CAM SYSTEMS PVT. LTD.
Price: 785000.00 INR
Availability: InStock

Price 785000.00 INR/ Unit

Get a Price/Quote

MOQ : 1 Unit

CNC Router Specification

Product Type
CNC Router

General Use
Woodworking, Acrylic Cutting, Plastic Engraving

Material
Mild Steel, Aluminum (Frame), Cast Iron (Base)

Type
Automatic CNC Router

Capacity
Continuous Operation

Weight (kg)
1200 kg

Computerized
Yes

Automatic
Yes

PLC Control
Available

Bar Feeder
No

Power Source
Electric

Power Consumption
3 kW

Rigidity
High

Voltage
220V / 380V

Motor
Stepper Motor

Table Size
1300 mm x 2500 mm

Spindle Speed
24000 RPM

Axial Choice
3 Axis

Dimension (L*W*H)
2000 mm x 3200 mm x 1700 mm

Feature
High Precision, Stable Structure, Low Noise

Color
Standard (Blue/White)

CNC Router Trade Information

Minimum Order Quantity
1 Unit

Supply Ability
10 Units Per Month

Delivery Time
1 Months

About CNC Router

CNC Router is a smart and intelligent computer-controlled machine that is high in demand due to its high-speed operation and low power consumption. It is designed and developed by our team of highly skilled professionals by using premium-quality materials and high-speed electrical drives that result in high durability and working efficiency. CNC Router availed by us is capable to move the machine drives with a maximum traveling speed of 25 meters per minute.

We are creating a brand name in every part of the national market by manufacturing and supplying 2385 x 3660 x 1600 mm CNC Router For Stone. The machine is made of strong steel structure, relieves stress and makes working table more steady. The machine can accurately position and cut at high speeds. The 2385 x 3660 x 1600 mm CNC Router For Stone is designed to handle heavy duty CNC machining in various thicknesses flat plate. We offer these machines at reasonable prices.

Product details of CNC Router:

Country of Origin	Made in India
Material	Mild Steel
Power	Electric
Brand	Mehta
Job Material	Plastic
Operation Mode	Automatic

Technical Specification of CNC Router:

Models	RX - 1325	RX - 1530
Outer Dimension	2145 x 3275 x 1580 mm	2345 x 3775 x 1580 mm
Working Area (X, Y, Z)	1300 x 2500 x 200 mm	1500 x 3000 x 200 mm
Spindle	6 KW Air Cooled (HSD Italian)	6 KW Air Cooled (HSD Italian)
Spindle Speed	18000 RPM	18000 RPM
Distance between Bed and Gentry	200 mm	200 mm
Maximum Traveling Speed	25 mtr/min	25 mtr/min
Cutting Tool Diameter	3 to 20 mm	3 to 20 mm
Repeated Location	0.020 mm	0.020 mm
Operating System	High Speed PCI Base Controller	High Speed PCI Base Controller
Driving System	Servo Motor	Servo Motor
Weight	1000 Kg	1185 Kg
Power Supply	AC 420V/3PH	AC 420V/3PH
Above specifications are subject to change without prior notice

High Precision and Performance

Equipped with a 3.5 kW air-cooled spindle and helical gear transmission, this CNC router achieves a remarkable working accuracy of 0.02 mm. Its sturdy structure minimizes vibrations and guarantees consistently precise results for demanding woodworking, acrylic, and plastic applications.

User-Friendly Operation and Versatility

Featuring an integrated control panel, automatic lubrication system, and compatibility with NC Studio, DSP, and Mach3, users benefit from a streamlined and efficient workflow. Flexible file format support-G-code, HPGL, DXF, PLT-broadens your creative capabilities and project opportunities.

Sturdy Build and Safety Assurance

Built with mild steel, an aluminum frame, and a cast iron base, the machine excels in rigidity and longevity. Safety covers, an emergency stop switch, and fully enclosed components safeguard both machine operators and valuable equipment during continuous operation.

FAQ's of CNC Router:

Q: How does the CNC router achieve its high precision and stability during operation?

A: The CNC router is engineered with a sturdy mild steel frame and cast iron base, combined with helical gear transmission and a high rigidity structure. Its advanced driving system (rack and pinion or lead screw) and repeatability of 0.05 mm contribute to consistent high-precision machining with minimal vibration.

Q: What materials and applications is this CNC router suitable for?

A: This CNC router is ideally suited for woodworking, acrylic cutting, and plastic engraving. Its high spindle speed (24,000 RPM) and robust build enable efficient processing of various materials, making it optimal for manufacturers, exporters, and suppliers in these industries.

Q: When should the automatic lubrication system be maintained?

A: The CNC router features an automatic lubrication system that routinely oils the machine's moving parts to ensure smooth operation and reduce wear. It is recommended to inspect the lubrication reservoir periodically, according to your production schedule, and refill as needed for uninterrupted performance.

Q: Where can this CNC router be effectively installed and operated?

A: The router is suitable for professional workshops or factory environments within the recommended temperature range (0-45C) and humidity (30-75%). Its robust and compact design makes it appropriate for businesses of various sizes, provided they meet the electric requirements (220V/380V).

Q: What is the process for loading files and starting a project with this CNC router?

A: Users can import project files in G-code, HPGL, DXF, or PLT formats directly into the machine's compatible control systems (NC Studio, DSP, or Mach3). After file import, simply select your tool via the ER25 holder, set parameters on the integrated control panel, and initiate the machining process.

Q: How do the safety features enhance operator protection during use?

A: Equipped with an emergency stop switch and safety cover, the CNC router ensures rapid intervention in case of any unexpected incidents. These features, along with the sturdy enclosed design, help protect users and bystanders throughout the operation.

Q: What are the key benefits of choosing this CNC router for your business?

A: This machine offers high precision, operational stability, low noise, and continuous automatic capability. Its versatility, user-friendly interface, and significant safety measures make it a valuable asset for improving productivity and quality in manufacturing and fabrication businesses.
