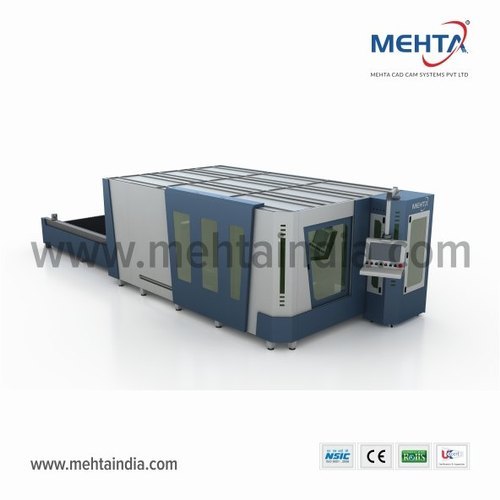

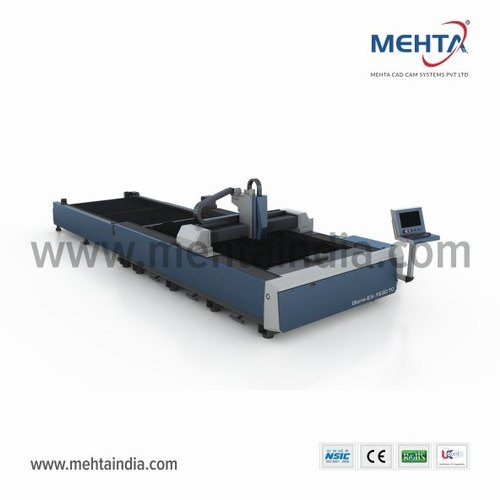

Fiber Laser Metal Cutting Machine Gloria EX 1530 TC

Name: Fiber Laser Metal Cutting Machine Gloria EX 1530 TC
Brand: MEHTA CAD CAM SYSTEMS PVT. LTD.
Price: 3000000.00 INR
Availability: InStock

Price 3000000.00 INR/ Unit

Get a Price/Quote

MOQ : 1 , , Unit

Fiber Laser Metal Cutting Machine Gloria EX 1530 TC Specification

Control System
CNC / PC-Based Controller

Noise Level
70 dB(A)

Operating Temperature
5C to 40C

Cooling System
Industrial Water Chiller

Voltage
380V/50Hz (3 Phase)

Production Capacity
Material thickness: up to 22mm MS, 12mm SS (as per laser power)

Features
High Cutting Speed, Precision Cutting, Auto Focus Laser Head, Low Maintenance, Flexible Programming

Machine Type
Automatic Metal Sheet and Tube Laser Cutting

Drive
Dual Rack & Pinion System, Precision Linear Guideways

Accuracy
0.03 mm

Power Rating
Up to 6 kW

Connectivity Options
USB, Ethernet

Frequency
50/60 Hz

Motor Power
Japan Yaskawa Servo Motor (Power per axis: up to 1.5 kW)

Plastic Processed
N/A (Designed for Metals)

Lubricating System
Automatic Centralized Lubrication

Frame Type
Heavy Duty Welded Frame

Model No
Gloria EX 1530 TC

Product Type
Fiber Laser Metal Cutting Machine

Technology
Fiber Laser Cutting

Power Source
Electric

Operating Type
Automatic / CNC Controlled

Power
1000W to 6000W (Customizable depending on model)

Pressure
Not Applicable (Fiber Laser)

Surface Treatment
N/A (for machine body; machine designed for metal cutting applications)

Dimension (L*W*H)
4500 mm x 2200 mm x 1800 mm (approx.)

Weight (kg)
Approx. 3500 kg

Color
Standard White & Blue (customizable on request)

Usage & Applications
Cutting of MS, SS, GI, Copper, Aluminium, Brass, and Allied Metals

Fiber Laser Metal Cutting Machine Gloria EX 1530 TC Trade Information

Minimum Order Quantity
1 , , Unit

Supply Ability
10 Units Per Month

Delivery Time
1 Months

About Fiber Laser Metal Cutting Machine Gloria EX 1530 TC

Fiber Laser Metal Cutting Machine Gloria EX 1530 TC is a high-speed machining unit that can be used in manufacturing, sheet metal fabrication, and various other industries for the production of highly finished and dimensionally accurate products in different shapes and sizes. The laser gun is fixed with a computer-controlled drive that makes it capable to move in longitudinal as well as traverse directions. Fiber Laser Metal Cutting Machine Gloria EX 1530 TC availed by us is equipped with AC servo drives that makes it capable to achieve a maximum traveling speed of 70 meters per minute.

Product details

Country of Origin	Made in India
Model Name/Number	GLORIA EX 1530 TC
Laser Power	1000 / 1500 Watt
Cutting Speed	30 m/min
Working Area	5 feet X 10 feet
Voltage	AC 420V
Brand	Mehta Cad Cam Systems Pvt. Ltd.
Cutting Material	Mild Steel
Usage/Application	Industrial

Technical Specification

Model	GLORIA-EX-1530
Working Area	5 feet X 10 feet
Laser Source	1000 / 1500 Wat
Laser Type	IPG / Raycus
Laser Wavelength	1080 nm
Cutting Head	MCH-1R / MCH-4A
Max. Cutting Speed	30 m/min
Max. Traveling Speed	70 m/min
Position Accuracy	< 0.04 mm
Minimum Line Width	< 0.12 mm
Cooling System	Water Cooling
Drives & Control	AC Servo Motor
Working Voltage	AC 420V
Weightage	3 ton

High-Speed Precision for Diverse Metals

Engineered for efficiency, the Gloria EX 1530 TC utilizes advanced fiber laser technology to deliver clean, precise cuts across a broad range of metals, including mild steel, stainless steel, aluminium, copper, and brass. The automatic dual-use design allows seamless transition between sheet and tube processing, supporting complex production demands with consistency and speed. Integrated auto-focus, high-quality servo motors, and heavy-duty construction guarantee stable performance and exceptional precision for every application.

Flexible Operation with Smart Control

The CNC/PC-based control system and compatibility with industry-leading software such as CypCut, FSCUT, AutoCAD, and CorelDraw (DXF/PLT/AI files) offer flexible programming and editing of cutting paths. Operators benefit from an intuitive touchscreen interface, remote diagnostics, and software upgrades, ensuring hassle-free operation and easy integration into modern manufacturing workflows.

Enhanced Safety and User-Friendly Features

Safety is paramount with the Gloria EX 1530 TC, featuring a fully enclosed protective housing, observation windows, emergency stop capability, and interlocked doors. The machine incorporates automatic lubrication, effective fume extraction options, and minimal noise emission, promoting a safe and comfortable working environment. Optional conveniences like automatic pallet changers and pneumatic or electric tube chuck clamping streamline productivity further.

FAQ's of Fiber Laser Metal Cutting Machine Gloria EX 1530 TC:

Q: How does the Gloria EX 1530 TC enhance metal cutting precision?

A: The machine employs a dual rack & pinion system and precision linear guideways, coupled with auto focus and high-quality servo motors, enabling repeatable cutting accuracy of 0.02 mm. Its fiber laser technology ensures minimal heat distortion and consistently clean edges on a variety of metal types.

Q: What types and thicknesses of materials can this machine cut?

A: The Gloria EX 1530 TC is suitable for cutting mild steel (up to 22 mm), stainless steel (up to 12 mm), aluminium (up to 10 mm), and brass (up to 8 mm). The specific cutting capacity depends on selected laser power and configuration, making it versatile for industrial fabrication needs.

Q: When should I use auxiliary gases like oxygen or nitrogen during the cutting process?

A: Auxiliary gases are used to improve cut quality and reduce oxidation. Oxygen is commonly used with mild steel for faster cuts, while nitrogen is preferred for stainless steel and aluminium to achieve clean, oxide-free edges. Air can also be used for cost-effective applications depending on material and desired finish.

Q: Where can the Gloria EX 1530 TC be installed, and what are the space requirements?

A: This machine is designed for industrial settings such as manufacturing plants, workshops, or fabrication units. The approximate machine dimensions are 4500 mm x 2200 mm x 1800 mm, and a dedicated power supply (380V/50Hz, 3 Phase) along with ventilation for fume extraction should be considered during installation.

Q: How do I transfer design files to the machine for cutting?

A: Design files can be prepared in DXF, PLT, or AI formats using CAD software like AutoCAD or CorelDraw. These files are uploaded to the machine's CNC control system via USB or Ethernet. The system is compatible with CypCut and FSCUT software for smooth workflow integration.

Q: What benefits does the automatic pallet changer provide?

A: The optional automatic pallet changer enables rapid switching between loaded and processed materials, minimizing downtime and maximizing productivity, especially during high-volume production or varied sheet/tube cutting tasks.

Q: Is ongoing maintenance required for optimal machine performance?

A: Yes, the machine features an automatic centralized lubrication system to ensure smooth operation. Regular checks of the industrial water chiller, optics, and safety systems are recommended to maintain performance, reduce wear, and prolong the lifespan of critical components.
