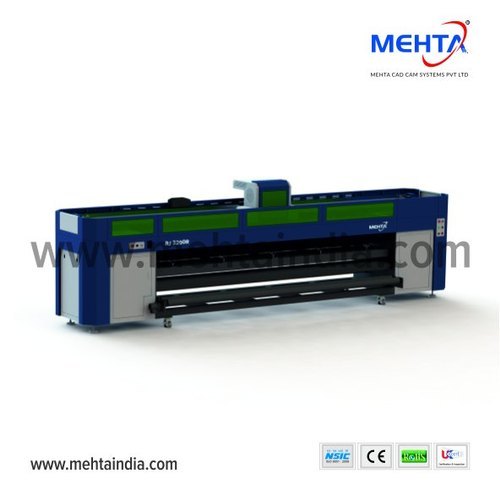

UV Roll To Roll Printer RJ 3200R

Name: UV Roll To Roll Printer RJ 3200R
Brand: MEHTA CAD CAM SYSTEMS PVT. LTD.
Price: 2300000.00 INR
Availability: InStock

Price 2300000.00 INR/ Unit

Get a Price/Quote

MOQ : 1 , , Unit

UV Roll To Roll Printer RJ 3200R Specification

Function
Roll-to-roll UV printing

Noise Level
60 dB

Weight
Approx. 1800 kg

Processor Type
Industrial high-performance processor

Usage & Applications
Outdoor banners, backlit, vehicle graphics, wallpaper, PVC, vinyl, mesh fabric, canvas

Working Temperature
20C 28C

Print Speed
Up to 80 sqm/hr (2Pass)

Capacity
Dual-roll printing with max. roll diameter 300 mm

Print Technology
UV LED Inkjet

Processor Speed
Up to 1.2 GHz

Cabinet Material
Powder coated steel

Humidity %
35-65% RH (non-condensing)

Features
LED UV curing, dual-roll printing, anti-crash system, negative pressure ink supply, adjustable vacuum bed

Power Supply
Single Phase AC 220V 50/60Hz

Interface
USB 3.0 / Ethernet

Condition
New

Material
Heavy-duty steel & alloy

Dimensions
Approx. 5200 x 1050 x 1600 mm

Gross Power
5.5 kW

Voltage
AC 220V 10%, 50/60Hz

Automatic Grade
Automatic

Color Print Speed
up to 40 sqm/hr (6Pass)

Black Print Speed
Same as color (supports grayscale mode)

Maximum Paper Size
3200 mm (Roll width)

Maximum Resolution
2400 dpi

Use
Large format UV printing on flexible media

UV Roll To Roll Printer RJ 3200R Trade Information

Minimum Order Quantity
1 , , Unit

Supply Ability
10 Units Per Month

Delivery Time
1 Months

About UV Roll To Roll Printer RJ 3200R

UV Roll To Roll Printer RJ 3200R is a high-speed print solution used in the making of high-quality prints in multiple color options with high precision and low ink consumption. It is commonly used in batch printing applications due to its excellent repeatability and faster processing speed. It is capable to prints with a maximum width of 3200 millimeters. UV Roll To Roll Printer RJ 3200R offered by us is provided with an inbuilt ultraviolet curing system to improve chemical and abrasion resistance.

Technical Specification

Model/Type	RJ 3200R
Brand/Make	Mehta
Max Printing Width	3200mm
Print Size	10 ft

Industrial Level UV Roll to Roll Printer

RJ 3200R is High printing speed & High resolution Industrial UV Printer which will meet the speed and quality request of clients. It is equipped with 2-6units Grey Scale micropiezo printheads, 4/6/8 colors high productivity print is available which is to satisfied the clients when clients are with big batch production order.

Precision and Productivity

Designed for demanding industrial environments, the RJ 3200R combines rugged construction with advanced print technology. Its industrial Micro Piezo print heads and integrated UV LED drying system guarantee sharp outcomes at unprecedented speeds, making it suitable for high-volume operations and diverse media types.

Seamless Media Handling

Built-in front and rear media feeding, take-up, and automatic alignment systems ensure smooth operation. The dual-roll capability with a maximum roll diameter of 300 mm allows simultaneous printing on two rolls, enhancing productivity and minimizing downtime for media changes.

User-Friendly Automation

The printer features an automated anti-crash system, negative pressure ink supply, adjustable vacuum bed, and automatic edge detection for ease of use and reliable performance. The intuitive design and comprehensive RIP software support (Photoprint, Maintop, Caldera) streamline workflow and simplify complex print jobs.

FAQ's of UV Roll To Roll Printer RJ 3200R:

Q: How does the UV LED curing system benefit the printing process?

A: The integrated UV LED curing system provides instant ink drying, improving productivity and print quality. This technology reduces smudging, enhances color vibrancy, and increases the printer's capacity to handle fast production speeds without downtime for ink setting.

Q: What types of media can the RJ 3200R handle and what are its maximum size specifications?

A: The printer supports flexible media such as outdoor banners, backlit materials, vehicle graphics, wallpaper, PVC, vinyl, mesh fabric, and canvas up to 3200 mm roll width and 1 mm thickness. Its dual-roll system accommodates rolls with diameters up to 300 mm.

Q: When should I use the optional white ink or varnish features?

A: The optional white ink is ideal for printing on transparent or colored substrates, ensuring vibrant and opaque color reproduction. Varnish can be applied for protective or decorative finishes, adding gloss or texture to enhance print appearance and durability.

Q: Where can the UV Roll To Roll Printer RJ 3200R be installed?

A: This printer is suitable for installation in industrial or commercial printing environments with a stable power supply (AC 220V 10%, single phase). It requires a controlled climate (20C-28C, 35-65% RH) and sufficient space for its dimensions (approx. 5200 x 1050 x 1600 mm).

Q: What is the setup and operating process for printing jobs?

A: The process involves loading media onto the front or rear system, using automatic edge detection for alignment, selecting print settings through supported RIP software, and monitoring via the interface (USB 3.0/Ethernet). The printer handles ink flow, drying, and media take-up automatically, streamlining production from start to finish.

Q: How does the printer ensure print accuracy and minimize errors?

A: Features such as automatic edge detection and alignment, an anti-crash system, adjustable vacuum bed, and negative pressure ink supply work together to prevent media misfeeds, head strikes, and ink supply issues, maintaining high accuracy and reliable output throughout complex jobs.

Q: What are the advantages of using the RJ 3200R for large format printing businesses in India?

A: The RJ 3200R offers high-speed, high-resolution output, robust construction, dual-roll capability, and compatibility with leading software, making it a powerful, cost-effective choice for exporters, importers, manufacturers, and suppliers handling varied and large-volume print jobs.
