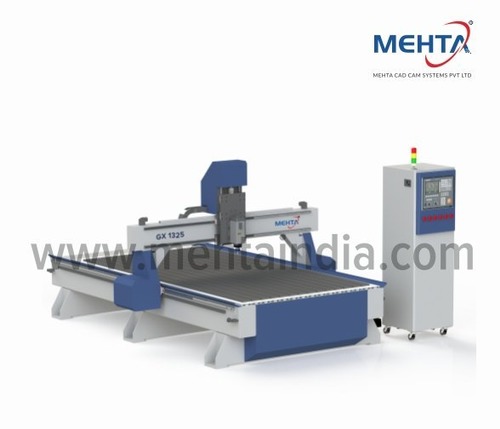

GX 1325 CNC Engraving Machine

Name: GX 1325 CNC Engraving Machine
Brand: MEHTA CAD CAM SYSTEMS PVT. LTD.
Price: 945000.00 INR
Availability: InStock

Price 945000.00 INR/ Unit

Get a Price/Quote

MOQ : 1 , , Unit

GX 1325 CNC Engraving Machine Specification

Voltage
AC 220V / 380V (customizable)

Frame Type
Welded Steel Structure

Machine Type
CNC Router Engraving Machine

Drive
Rack and Pinion / Ball Screw (for Z axis)

Lubricating System
Automatic Lubrication

Production Capacity
High (varies with material and design complexity)

Operating Temperature
0~45C

Power Rating
3.0 kW

Cooling System
Water Cooling

Accuracy
0.05 mm

Control System
DSP / NcStudio

Features
Heavy duty frame, Precision ball screw, High-speed spindle, User friendly software compatibility

Motor Power
Stepper/Servo (3-phase, high torque)

Connectivity Options
USB, Ethernet

Noise Level
80 dB

Model No
GX 1325

Frequency
50/60 Hz

Product Type
CNC Engraving Machine

Technology
CNC

Power Source
Electric

Operating Type
Automatic

Power
3 kW

Pressure
Not Applicable (for engraving machines)

Surface Treatment
Paint Coated

Dimension (L*W*H)
1300 mm x 2500 mm x 1600 mm

Weight (kg)
1300 kg

Color
White & Blue

Usage & Applications
Wood, MDF, Acrylic, PVC, Aluminum, Non-metal engraving and cutting

Spindle Speed
0-24,000 RPM

Environment Humidity
30-75% RH

Interface Language
Multi-language support

Transport Package
Wooden Case

Work Table Size
1300 mm x 2500 mm

Max Material Thickness
up to 200 mm

Repeat Positioning Accuracy
±0.02 mm

Supported File Formats
G-code, DXF, PLT, BMP, etc.

Application Materials
Wood, PVC, MDF, Acrylic, Soft Metals, Composite boards

Dust Extraction
Available (optionally configurable)

Working Speed
0 - 25,000 mm/min

Table Structure
Vacuum Table with T-slot for Clamping

Spindle Cooling Type
Industrial Water-cooled

Compatible Software
ArtCAM, Type3, Ucancam, Aspire, etc.

Safety System
Emergency Stop, Limit Switches

GX 1325 CNC Engraving Machine Trade Information

Minimum Order Quantity
1 , , Unit

Supply Ability
10 Units Per Month

Delivery Time
1 Months

About GX 1325 CNC Engraving Machine

Product details

Cutting Tool Diameter	3 to 20 mm
Automatic Grade	Automatic
Features	Self-Lubrication System,Spindle Cooling System
Brand	Mehta
Model Number	GX 1325
Spindle Speed	18000 RPM
Weight	1260 Kg
Working Area	1300 x 2500 x 250 mm
Operating System	High Speed PCI Base Controller
Table Structure	Heavy Duty Rigid Mild Steel Frame Structure
Power Supply	AC 440V/3PH
X and Y Axis Traveling	Rack Pinion (Made in Taiwan)
Spindle	6 KW Air Cooled (HSD Italian)
Repeated Location	0.020 mm
Outer Dimension	2161 x 3160 x 1000 mm
Maximum Traveling Speed	30 mtr/min
Driving System	AC Servo Motor (JAPAN)

Specification

Models	GX - 1530
Outer Dimension	2361 x 3660 x 1000 mm
Working Area (X, Y, Z)	1500 x 3000 x 250 mm
Spindle	6 KW Air Cooled (HSD Italian)
Spindle Speed	18000 RPM
Maximum Traveling Speed	30 mtr/min
Cutting Tool Diameter	3 to 20 mm
X and Y Axis Traveling	Rack Pinion (Made in Taiwan)
Table Structure	Heavy Duty Rigid Mild Steel Frame Structure
Repeated Location	0.020 mm
Operating System	High Speed PCI Base Controller
Driving System	AC Servo Motor (JAPAN)
Weight	1450 Kg
Power Supply	AC 440V/3PH
Above specifications are subject to change without prior notice

Precision and Versatility Unleashed

The GX 1325 CNC Engraving Machine ensures remarkable repeat positioning accuracy of 0.02 mm. It features a powerful 3 kW spindle and accommodates materials up to 200 mm thick, making it suitable for a wide range of applications, including intricate woodwork and non-metal engraving. The vacuum table with T-slot design enhances clamping flexibility, ensuring secure and stable workpiece fixation during operations.

Intuitive Control and Broad Compatibility

Supporting popular software such as ArtCAM, Type3, Ucancam, and Aspire, the GX 1325 seamlessly integrates into diverse digital workflows. It recognizes multiple file formats like G-code, DXF, PLT, and BMP, streamlining project setup. The machine's DSP or NcStudio control system, along with multi-language interface options, enhances accessibility and ease of operation for global users.

Robust Design Meets Efficient Performance

Built with a welded steel frame and precision ball screw assembly, the GX 1325 delivers outstanding durability and reliability even under high workloads. Its high-speed spindle, automatic lubrication system, industrial water cooling, and optional dust extraction system maintain productivity and protect both the operator and the machine for long-lasting use.

FAQ's of GX 1325 CNC Engraving Machine:

Q: How does the GX 1325 CNC Engraving Machine secure different materials during operation?

A: The GX 1325 features a vacuum table with T-slots, allowing for both vacuum-based clamping and mechanical fixing. This ensures secure holddown for various materials, making your cutting and engraving process stable and precise.

Q: What is the maximum thickness and size of material that this machine can accommodate?

A: The machine supports materials up to 200 mm thick and features a large working table measuring 1300 mm x 2500 mm, enabling processing of substantial workpieces for both small-scale and large-scale projects.

Q: Which file formats and software are compatible with the GX 1325 CNC Router Engraving Machine?

A: It recognizes G-code, DXF, PLT, BMP, and other formats, and works seamlessly with industry-standard software like ArtCAM, Type3, Ucancam, and Aspire, ensuring smooth integration into your workflow.

Q: What safety and maintenance features are included in the GX 1325?

A: For operator safety, the machine is equipped with an emergency stop, limit switches, and an optionally configurable dust extraction system. An automatic lubrication system and industrial water-cooling ensure the machine runs smoothly with minimal maintenance.

Q: Where can the GX 1325 CNC Engraving Machine be used, and what applications is it suitable for?

A: It's designed for industrial workshops, manufacturing units, and commercial workshops, performing high-precision engraving and cutting on wood, PVC, MDF, acrylic, aluminum, and composite boards, making it suitable for furniture, signage, and decorative industries.

Q: What are the benefits of the industrial water-cooling and automatic lubrication systems?

A: The industrial water-cooling system ensures the spindle remains at optimal temperature during extended operation, while the automatic lubrication keeps mechanical parts running smoothly, reducing downtime and increasing machine lifespan.

Q: How user-friendly is the interface language and control system of the GX 1325?

A: With multi-language support and a choice between DSP and NcStudio control systems, operators from diverse backgrounds can easily manage operations, setup, and programming, regardless of their experience level.
