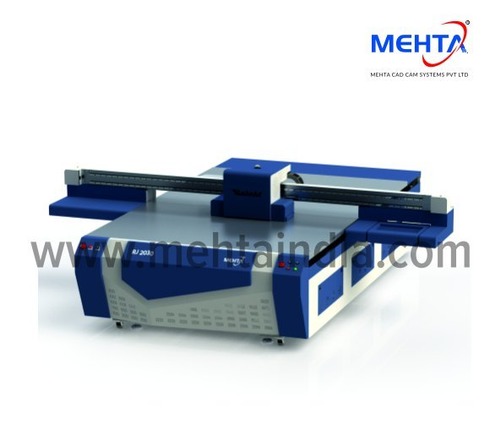

UV FlatBed Printer RasterJet RJ 2030

Name: UV FlatBed Printer RasterJet RJ 2030
Brand: MEHTA CAD CAM SYSTEMS PVT. LTD.
Price: 2500000.00 INR
Availability: InStock

Price 2500000.00 INR/ Unit

Get a Price/Quote

MOQ : 1 Unit

UV FlatBed Printer RasterJet RJ 2030 Specification

Processor Speed
1.2 GHz

Capacity
Continuous Printing

Function
Flatbed Printing, UV Curing

Weight
800-900 kg

Noise Level
<65 dB

Print Speed
9-12 m/hr (Color/Black)

Working Temperature
18C - 30C

Processor Type
ARM-based Controller

Power Supply
AC220-240V, 50/60Hz

Humidity %
20% - 80% RH (Non-condensing)

Usage & Applications
Acrylic, Glass, Wood, MDF, Metal, Ceramic Tiles, Leather, PVC, Foam Board, etc.

Interface
USB 2.0 / Ethernet

Cabinet Material
Heavy duty steel

Features
High precision, Multi-layer printing, White ink support, Adjustable height, Direct Print on Rigid Media

Print Technology
UV LED Flatbed Printing

Condition
New

Material
Metal body with aluminum gantry

Dimensions
4300mm x 2150mm x 1300mm

Gross Power
3500W

Voltage
220-240V, 50/60Hz

Automatic Grade
Automatic

Color Print Speed
9 m/hr

Black Print Speed
12 m/hr

Maximum Paper Size
2000mm x 3000mm (2m x 3m)

Maximum Resolution
2880 x 1440 dpi

Use
Industrial, Commercial Printing, Advertising

UV FlatBed Printer RasterJet RJ 2030 Trade Information

Minimum Order Quantity
1 Unit

Supply Ability
10 Units, , Per Month

Delivery Time
1 Months

About UV FlatBed Printer RasterJet RJ 2030

We are a renowned manufacturer and supplier of high-performance UV FlatBed Printer RasterJet RJ 2030 machine that is in high demand due to its high printing speed, fully automated control, and low power consumption. The z-axis of this unit is capable to move up to 100 mm that making it suitable to make prints on print media with a thickness of 100 millimeters. UV FlatBed Printer RasterJet RJ 2030 offered by us is capable to run efficiently for a longer period without the need for maintenance.

Technical Specification of UV FlatBed Printer:

Country of Origin	Made in India
Model/Type	RJ 2030
Weight	400-500Kg
Printing Size	2000 mm x 3000 mm
Automation Grade	Automatic
Power Consumption	Electric
Body Material	MS
Automatic Grade	Automatic
Brand	Mehta

Versatile Printing on Multiple Materials

The RasterJet RJ 2030 UV FlatBed Printer supports direct printing on a wide variety of rigid materials such as acrylic, glass, wood, MDF, metal, ceramic tiles, leather, PVC, and foam board. Its adjustable height and robust metal construction allow seamless accommodation of materials up to 100mm thick, offering businesses the flexibility to serve diverse markets and application requirements without compromising on print quality.

Advanced Technology for High Precision

Equipped with Ricoh Gen5 industrial printheads and a precision linear guide rail, the RJ 2030 ensures accurate registration (0.1 mm) and exceptional print fidelity up to 2880 x 1440 dpi. Multi-layer printing, white ink support, and optional varnish enable creative finishes and added durability, while the ARM-based controller and high-speed transmission guarantee efficient, continuous performance in demanding commercial environments.

Efficient and Safe Industrial Operation

With a print speed of 9-12 m2/hr (color/black) and compatibility with Windows 7/8/10, the RJ 2030 is designed for productivity. The integrated overload protection, emergency stop features, and adjustable UV LED curing system prioritize operational safety. Its power-efficient design (3.5 kW) and noise level under 65 dB make it suitable even in busy, industrial workspaces.

FAQ's of UV FlatBed Printer RasterJet RJ 2030:

Q: How do I use the RasterJet RJ 2030 to print on different rigid materials?

A: The RJ 2030 is designed with an adjustable height system, allowing users to print directly on substrates up to 100mm thick. Simply adjust the height, position the material (acrylic, glass, wood, metal, etc.), select your print settings, and start the process using compatible RIP software. The robust build accommodates various materials for high-quality output.

Q: What are the main benefits of UV LED curing technology in this printer?

A: UV LED curing enables instant ink drying, enhancing print durability and providing vibrant color reproduction. This technology supports multi-layer and varnish effects, allows printing on a broad range of rigid media, reduces energy consumption, and eliminates waiting time between prints, boosting efficiency for industrial and commercial operations.

Q: Where can the RJ 2030 UV FlatBed Printer be installed and operated safely?

A: The printer is suitable for industrial and commercial print shops, advertising agencies, and manufacturing units. Ensure it is placed in an environment with 18C - 30C temperature, 20% - 80% RH humidity (non-condensing), and proper ventilation. Its sturdy cabinet and low noise ensure safe, comfortable working conditions.

Q: How does the adjustable intensity UV LED lamp affect the printing process?

A: The adjustable intensity feature allows users to customize curing strength based on media type and ink requirements. This ensures optimal adhesion, prevents material distortion, and contributes to print longevity compared to conventional curing systems.

Q: What registration accuracy can be expected, and why is it important?

A: The RJ 2030 offers registration accuracy of 0.1 mm, ensuring precise layer alignment for multi-layer and detailed prints. This high accuracy is critical for professional-grade results, especially when printing text, fine graphics, or applying special effects like white ink or varnish.

Q: When is white ink or varnish application recommended with this printer?

A: White ink is recommended for printing on transparent or dark-colored materials to achieve vibrant color graphics, while varnish can be applied as an optional finishing layer to add gloss, matte, or textured effects, as well as enhance print durability. The system supports both options based on project requirements.

Q: What workflow and software compatibility considerations should be made?

A: The printer supports Photoprint, Maintop, and Onyx RIP software, and is compatible with Windows 7/8/10. Ensure your workflow includes high-speed USB or Ethernet data transmission for reliability, and select RIP options that meet your color management and output requirements for seamless production.
