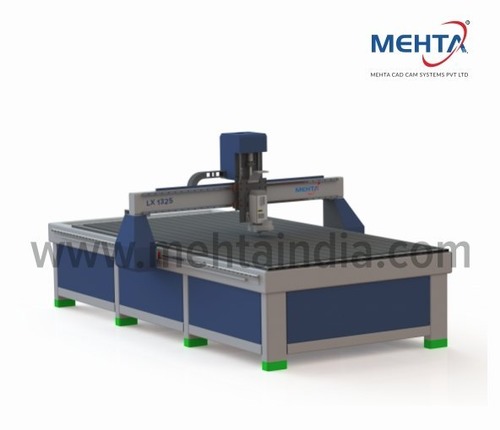

RX 1325 CNC Engraving Machine

Name: RX 1325 CNC Engraving Machine
Brand: MEHTA CAD CAM SYSTEMS PVT. LTD.
Price: 785000.00 INR
Availability: InStock

Price 785000.00 INR/ Unit

Get a Price/Quote

MOQ : 1 Unit

RX 1325 CNC Engraving Machine Specification

Power Rating
3.0 kW / 4 HP

Frequency
50/60 Hz

Connectivity Options
USB, Parallel Port, Network

Cooling System
Water Cooling (Spindle)

Accuracy
0.05 mm

Lubricating System
Auto

Production Capacity
High

Voltage
AC 220V/380V (Three Phase)

Machine Type
CNC Engraving Router

Drive
Stepper/Servo Motor Driven

Operating Temperature
0C 45C

Plastic Processed
Acrylic, PVC, Polycarbonate

Control System
DSP/NC Studio Control

Noise Level
Low

Model No
RX 1325

Frame Type
Heavy-duty Steel

Features
High Precision, Rigid Frame, Easy Operation, Stable Performance

Motor Power
Stepper/Servo Motor, 450W per axis

Product Type
CNC Engraving Machine

Technology
CNC (Computer Numerical Control)

Power Source
Electric

Operating Type
Automatic

Power
3.0 kW

Pressure
N/A (Non-Pneumatic)

Surface Treatment
Powder Coated

Dimension (L*W*H)
1300 x 2500 x 200 mm

Weight (kg)
1000 kg (approx)

Color
Blue & White

Usage & Applications
Wood, Acrylic, MDF, Plastic, Aluminium Engraving and Cutting

WorkingSpeed
0-25000 mm/min

Command Code
G Code

Operational Environment Humidity
30%75% non-condensing

Table Structure
T-slot or Vacuum Table

Repeat Positioning Accuracy
0.02 mm

Spindle Speed
0-24000 rpm

Max. Engraving Depth
120 mm

Transmission
XYZ axisHelical Rack & Pinion (X/Y), Ball Screw (Z)

Clamping System
Clamp or Vacuum

Software Compatibility
ArtCAM, Type3, Ucancam, etc.

Max. Moving Speed
35000 mm/min

Tool Changing
Manual/Optional Automatic

Supported File Formats
DXF, PLT, ENG, AI, etc.

RX 1325 CNC Engraving Machine Trade Information

Minimum Order Quantity
1 Unit

Supply Ability
10 Units Per Month

Delivery Time
1 Months

About RX 1325 CNC Engraving Machine

Product details

Cutting Tool Diameter	3 to 20 mm
Automatic Grade	Automatic
Brand	Mehta
Model Number	RX 1325
Spindle Speed	18000 RPM
Weight	1000 Kg
Working Area	1300 x 2500 x 200 mm
Operating System	High Speed PCI Base Controller
Power Supply	AC 420V/3PH
Spindle	6 KW Air Cooled (HSD Italian)
Repeated Location	0.020 mm
Outer Dimension	2145 x 3275 x 1580 mm
Maximum Traveling Speed	25 mtr/min
Driving System	Servo Motor
Distance between Bed and Gentry	200 mm

Specification

Models	RX - 1530
Outer Dimension	2345 x 3775 x 1580 mm
Working Area (X, Y, Z)	1500 x 3000 x 200 mm
Spindle	6 KW Air Cooled (HSD Italian)
Spindle Speed	18000 RPM
Distance between Bed and Gentry	200 mm
Maximum Traveling Speed	25 mtr/min
Cutting Tool Diameter	3 to 20 mm
Repeated Location	0.020 mm
Operating System	High Speed PCI Base Controller
Driving System	Servo Motor
Weight	1185 Kg
Power Supply	AC 420V/3PH

Precision Engraving Across Materials

Equipped with a helical rack & pinion drive on X/Y axes and a ball screw on Z, the RX 1325 CNC Machine delivers exceptional precision (0.05 mm accuracy) for engraving and cutting a wide variety of materials, including wood, acrylic, MDF, plastics, and aluminium. Its repeatability and robust construction suit both mass production and customized jobs.

Advanced Control and Flexible Operation

With DSP/NC Studio control, USB, network, and parallel connectivity, the RX 1325 can easily integrate with existing IT infrastructure. Supporting popular CAD/CAM software such as ArtCAM, Type3, and Ucancam through standard G Code, it streamlines workflows for manufacturers, exporters, and importers seeking reliable automation.

Built for Industrial Performance

The machine's heavy-duty powder-coated steel frame, auto-lubrication, efficient water-cooling for the spindle, and low noise operation ensure lasting performance even in demanding environments. Operators benefit from easy setup, stable operation, and the option of manual or automatic tool change for uninterrupted production.

FAQ's of RX 1325 CNC Engraving Machine:

Q: How does the RX 1325 CNC Engraving Machine achieve high engraving precision?

A: The RX 1325 uses a helical rack and pinion system for X and Y axes and a ball screw drive on the Z axis, combined with high-quality stepper or servo motors (450W per axis). This ensures repeat positioning with an accuracy of 0.02 mm and engraving accuracy of 0.05 mm, ideal for detailed work.

Q: What materials and files can be processed with this machine?

A: The RX 1325 can engrave and cut wood, acrylic, MDF, plastic, aluminium, PVC, and polycarbonate. It supports multiple file formats, such as DXF, PLT, ENG, AI, and more, offering great flexibility in project design and material selection.

Q: When should I opt for the vacuum table or use clamps for clamping?

A: Vacuum tables are recommended for handling large, flat, or multiple sheet materials to ensure quick and secure holding. Clamps are beneficial when working on irregular shapes or smaller pieces that require customized positioning.

Q: Where is the RX 1325 best suited for installation?

A: This machine is ideal for workshops, factories, and industrial facilities with a controlled environment (30%-75% non-condensing humidity, 0-45C temperature range). Its size and weight require a stable, level foundation for optimal performance.

Q: What is the process for operating and maintaining the RX 1325 CNC router?

A: Operation involves uploading compatible designs via USB, network, or parallel port, configuring the tool path using supported software, and executing the job with DSP/NC Studio controls. The machine features auto-lubrication and a water-cooled spindle, simplifying maintenance and ensuring smooth long-term operation.

Q: How does this engraving machine benefit manufacturers, exporters, and suppliers?

A: The RX 1325 offers high production capacity, stable performance, and easy operation. Manufacturers can expect reduced turnaround times, while exporters and suppliers benefit from reliable output and versatile material compatibility, enhancing their product offerings and market reach.
