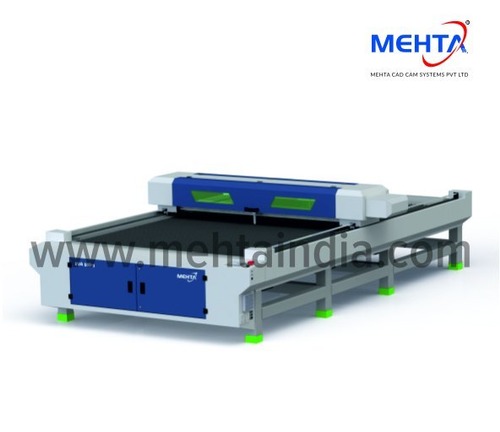

CO2 Laser Engraving Machine

Name: CO2 Laser Engraving Machine
Brand: MEHTA CAD CAM SYSTEMS PVT. LTD.
Price: 925000.00 INR
Availability: InStock

Price 925000.00 INR/ Unit

Get a Price/Quote

MOQ : 1 , , Unit

CO2 Laser Engraving Machine Specification

Power Rating
60 W 150 W (based on configuration)

Accuracy
0.01 mm

Machine Type
Flatbed Laser Engraver

Connectivity Options
USB, Ethernet

Production Capacity
1000+ pieces/day

Plastic Processed
Acrylic, PVC

Frame Type
Welded Steel Structure

Motor Power
Stepper Motor

Lubricating System
Manual

Operating Temperature
5C 40C

Features
High precision, stable performance, easy operation, durability

Voltage
220 V

Frequency
50 Hz/60 Hz

Model No
CO2-1490

Drive
Belt Driven

Noise Level
Low

Cooling System
Water Cooling

Control System
DSP Control System

Product Type
CO2 Laser Engraving Machine

Technology
Laser Technology

Power Source
Electric

Operating Type
Automatic

Power
60 W

Pressure
Ambient

Surface Treatment
Powder Coated

Dimension (L*W*H)
1400 x 900 x 1000 mm

Weight (kg)
180 kg

Color
Blue and White

Usage & Applications
Engraving and Cutting non-metal materials such as Acrylic, MDF, Wood, Leather, Paper, and Plastic

Supported File Format
BMP, PLT, DXF, AI, JPG, PNG, TIF

Minimum Letter Size
1 x 1 mm

Focal Length
50.8 mm

Max Cutting Speed
0400 mm/s

Engraving Area
1300 x 900 mm

Software Compatibility
CorelDRAW, AutoCAD, Photoshop, LaserWorks

Power Consumption
< 1200W

Laser Tube Type
Sealed CO2 Glass Tube

Laser Wavelength
10.6 m

Exhaust System
Yes, built-in fan and air assist

Cutting Thickness
0-18 mm (material dependent)

Memory Buffer
128 MB

Display Interface
LCD Panel

Safety Features
Emergency stop, interlock, cover protection

Table Type
Honeycomb + Blade Table

CO2 Laser Engraving Machine Trade Information

Minimum Order Quantity
1 , , Unit

Supply Ability
10 Units Per Month

Delivery Time
1 Months

About CO2 Laser Engraving Machine

Owing to our superb market understanding and wide industrial knowledge, we being a prevalent manufacturer and supplier occupied with offering a wide variety of 4 ft x 3 ft Laser Engraving and Cutting Machine. We deliver these machines in the wake of testing these on shifted quality parameters with a specific end goal to guarantee adaptability in operations. These machines are broadly used to stamp the characterized data on the made products by utilizing best quality ink. We offer the line of 4 ft x 3 ft Laser Engraving and Cutting Machine to the customers at industry driving costs.

Product details of CO2 Laser Engraving Machine:

Country of Origin	Made in India
Automation Grade	Automatic
Condition	New
Operation Mode	Automatic
Laser Type	CO2
I Deal In	New Only
Compatible Software	Coreldraw,Auto CAD,Coreldraw,Auto CAD,Photoshop
Place Of Origin	India

Precision and Versatility

Designed for professionals and businesses, this flatbed laser engraver achieves an impressive accuracy of 0.01 mm and a minimum letter size of 1 x 1 mm. Its 10.6 m laser wavelength enables intricate designs on a variety of materials, making it perfect for detailed signage, prototyping, custom art, and product manufacturing.

Robust Construction and User-Friendly Operation

The machine boasts a sturdy welded steel structure, powder-coated for longevity, and is equipped with a honeycomb plus blade table for optimal material support. An intuitive LCD panel, embedded DSP control system, and convenient USB/Ethernet connectivity enhance operator control while the emergency stop, interlock, and cover protection ensure safe use.

FAQ's of CO2 Laser Engraving Machine:

Q: How does the CO2-1490 laser engraving machine operate?

A: The CO2-1490 uses a sealed CO2 glass tube that emits a 10.6 m wavelength laser, guided by a DSP control system. Simply connect your design files via USB or Ethernet and control functions using the LCD interface. Water cooling and built-in air assist maintain the system's reliability during extended operation.

Q: What materials and thicknesses can this laser engraver process?

A: This machine efficiently engraves and cuts non-metal materials such as acrylic, MDF, wood, leather, paper, and plastic. Cutting thickness varies by material, with a maximum of up to 18 mm given optimal settings and configuration.

Q: Where is the CO2-1490 most commonly used?

A: The machine is ideal for workshops, educational institutions, signage production, and any setting requiring high-volume, precise engraving or cutting of non-metals. Its portability and robust build suit both small studios and industrial environments.

Q: What file formats and software are compatible with this engraver?

A: Compatible file formats include BMP, PLT, DXF, AI, JPG, PNG, and TIF. It interfaces seamlessly with CorelDRAW, AutoCAD, Photoshop, and LaserWorks for enhanced workflow flexibility.

Q: How is safety ensured when operating the CO2-1490 machine?

A: Operator safety is prioritized via built-in features: emergency stop button, interlock mechanisms, and cover protection. The exhaust system and air assist also help manage fumes and particulates for a safer working environment.

Q: What are the benefits of choosing the CO2-1490 model for engraving and cutting?

A: The CO2-1490 offers superior accuracy, high-speed processing (up to 400 mm/s), dual table support, and stable power. Its rugged structure, water cooling, low noise, and easy operation provide efficiency and consistent results for demanding applications.

Q: How do I maintain the CO2-1490 laser engraving machine?

A: Maintenance involves regular cleaning of optics, periodic water replacement in the cooling system, manual lubrication of moving parts, and inspection of safety features. Routine care ensures optimal performance and longevity.
