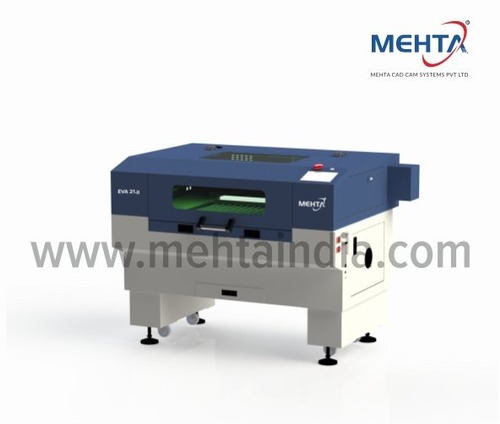

Co2 Laser Engraving Machine EVA 21

Name: Co2 Laser Engraving Machine EVA 21
Brand: MEHTA CAD CAM SYSTEMS PVT. LTD.
Price: 275000.00 INR
Availability: InStock

Price 275000.00 INR/ Unit

Get a Price/Quote

MOQ : 1 , , Unit

Co2 Laser Engraving Machine EVA 21 Specification

Operating Temperature
5C to 40C

Lubricating System
Manual Lubrication

Frame Type
Heavy-duty welded steel frame

Cooling System
Water Cooling (Industrial Chiller)

Power Rating
Up to 150W

Plastic Processed
EVA foam, Acrylic, PVC

Production Capacity
Up to 30 m/hr (material dependent)

Accuracy
0.05mm

Features
High precision, fast operation, low maintenance, easy operation

Frequency
50Hz / 60Hz

Voltage
220V 10%, 50Hz

Noise Level
<65 dB

Motor Power
Stepper Motor (XYZ Axis)

Connectivity Options
USB, Ethernet

Drive
Belt Drive

Control System
DSP Control System

Machine Type
Flatbed CO2 Laser Engraver

Model No
EVA 21

Product Type
Laser Engraving Machine

Technology
CO2 Laser

Power Source
Electric

Operating Type
Automatic

Power
100W / 130W / 150W (Optional)

Pressure
0.6 0.8 MPa

Surface Treatment
Polished finish

Dimension (L*W*H)
1500mm 1100mm 1100mm

Weight (kg)
320 kg

Color
Blue and White

Usage & Applications
Acrylic, MDF, Wood, Leather, EVA Foam, Plastic, Rubber, Paper, and Textile engraving/cutting

Co2 Laser Engraving Machine EVA 21 Trade Information

Minimum Order Quantity
1 , , Unit

Supply Ability
10 Units Per Month

Delivery Time
1 Months

About Co2 Laser Engraving Machine EVA 21

Product details of Co2 Laser Engraving Machine:

Country of Origin	Made in India
Operation Mode	Automatic
Laser Type	CO2
I Deal In	New Only
Compatible Software	Auto CAD,Coreldraw,Photoshop
Cooling Mode	Water Cooling
Input Voltage	220V
Model Name/Number	Eva 21
Weight	400-550kg

Pass Through Design for long length of work piece in Y-axis direction.
Machine is Provided with Foot-mounting legs so that there is no vibration in machine can be adjusted on zero level.
As it is made in india No waiting period for spare parts & quick service support.
Machine is provided with heavy duty compressor which has Air-assist combining adjustable focus systems in coaxial jet air to prevent cutting edge from burning down.
Laser cut software with window based software enhance cutting speed & angle / curve performance.
Laser seals the edges of fabric while cutting.
Maximum cutting thickness of arcylic 25mm.
High quality of chiller unit for better performance and long life of laser tube.

High Precision Performance

Equipped with a CO2 laser offering up to 1,000 DPI resolution and 0.05mm accuracy, the EVA 21 delivers consistently sharp and detailed engravings across various materials. Its robust stepper motor XYZ axis and belt-drive system ensure smooth, high-speed operation at up to 60,000 mm/min.

Versatile Material Compatibility

The EVA 21 is engineered for versatility, supporting engraving and cutting of EVA foam, acrylic, MDF, wood, leather, plastic, rubber, paper, textile, and more. Its polished surface treatment and optional worktable (honeycomb or blade) accommodate diverse material requirements and project specifications.

User-Friendly Operation and Connectivity

Featuring USB and Ethernet interfaces, the EVA 21 easily integrates into modern workflows. Compatible with multiple Windows operating systems, its DSP control system provides effortless operation and quick setup, making it ideal for both seasoned professionals and new users alike.

FAQ's of Co2 Laser Engraving Machine EVA 21:

Q: How do I operate the Co2 Laser Engraving Machine EVA 21 for engraving different materials?

A: Operation is straightforward: simply select your desired material, load the compatible design file format (BMP, PLT, DXF, AI, DST, DWG, LAS, or DXP) via USB or network, and use the DSP control system to configure engraving parameters. For different materials like acrylic, wood, or EVA foam, adjust the power, speed, and focus settings according to the material thickness and desired result.

Q: What materials can the EVA 21 engrave and cut, and what is its maximum engraving area?

A: The EVA 21 efficiently engraves and cuts acrylic, MDF, wood, leather, EVA foam, plastic, rubber, paper, and textiles. It features a spacious engraving area of up to 1300mm x 900mm, making it suitable for both small and large format projects.

Q: When should I perform maintenance on the machine, and what does it involve?

A: Routine maintenance-such as manual lubrication of the drive system and cleaning the working area-should be performed regularly, depending on usage. Check the water cooling system for proper function and monitor the exhaust system to ensure optimal air quality. Scheduled maintenance helps prolong the laser tube lifespan and ensures consistent performance.

Q: Where can I install the EVA 21 laser engraving machine?

A: The EVA 21 should be installed in a well-ventilated environment with temperatures ranging between 5C and 40C. Its heavy-duty welded steel frame and sealed design make it suitable for factory floors, workshops, or dedicated industrial engraving rooms. An accessible 220V power source is required for operation.

Q: What is the process for connecting and controlling the machine?

A: The engraver can be controlled through USB 2.0 or Ethernet connections, making it simple to integrate into various production setups. After connecting to your Windows computer (XP, 7, 8, or 10), use the DSP control system to upload files and manage the engraving or cutting process.

Q: How does the inbuilt high-power exhaust fan benefit operation?

A: The integrated exhaust system efficiently removes smoke and debris generated during engraving or cutting, enhancing operator safety and maintaining a clean workspace. This not only protects the machine's internal components but also ensures consistently high-quality results.

Q: What are the primary benefits of choosing the EVA 21 for production?

A: The EVA 21 offers high precision, fast processing speeds up to 30 m2/hr (material dependent), low maintenance requirements, and versatility in application. Its robust design, efficient cooling, and user-friendly controls make it a reliable, long-term solution for industrial engraving and cutting.
