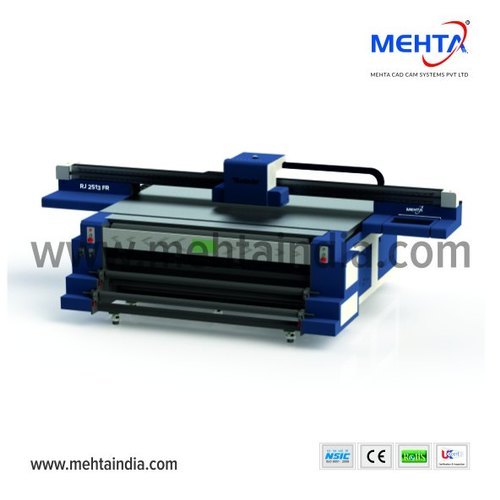

UV Flatbed RJ2513FR Hybrid Printer

Name: UV Flatbed RJ2513FR Hybrid Printer
Brand: MEHTA CAD CAM SYSTEMS PVT. LTD.
Price: 2675000.00 INR
Availability: InStock

Price 2675000.00 INR/ Unit

Get a Price/Quote

MOQ : 1 , , Unit

UV Flatbed RJ2513FR Hybrid Printer Specification

Processor Type
ARM High-Speed Processor

Capacity
High Volume, Multi-shift

Humidity %
20%80%

Processor Speed
Dual Core 1.6 GHz

Features
Hybrid Design; Supports Flat & Roll Printing; Auto Height Adjustment

Print Speed
6 ~ 14 sqm/h (Depending upon Mode)

Interface
USB 2.0 / Ethernet

Noise Level
60 dB

Working Temperature
18C ~ 30C

Power Supply
AC 220V 10%, 50/60 Hz

Cabinet Material
Industrial Sheet Metal Cabinet

Function
Printing on Both Rigid & Flexible Materials

Print Technology
UV LED Flatbed

Usage & Applications
Glass, Wood, PVC, Acrylic, Metal, Advertising, Signage

Weight
1250 kg

Condition
New

Material
Sheet Metal, Aluminum Alloy

Dimensions
4200 x 2150 x 1380 mm

Gross Power
3500W

Voltage
220V/50Hz

Automatic Grade
Automatic

Color Print Speed
6.5 sqm/h

Black Print Speed
8 sqm/h

Maximum Paper Size
2500 mm x 1300 mm

Maximum Resolution
1440 x 1440 dpi

Use
Industrial and Commercial Printing

Printhead Technology
Industrial Ricoh GEN5 / GEN6

Rip Software
Maintop / Photoprint / ONYX

Compatible Media Thickness
Up to 100 mm

Number of Printheads
2 - 8 Heads (Configurable)

Color Configuration
CMYK + White + Varnish (optional)

Media Feeding Mode
Vacuum / Suction Platform & Roll-to-Roll

Registration System
Pin Registration System for Repeat Accuracy

Lamp Life
30,000+ Hours

Ink Type
UV Curing Ink

Curing System
Dual UV LED Lamp

UV Flatbed RJ2513FR Hybrid Printer Trade Information

Minimum Order Quantity
1 , , Unit

Supply Ability
10 Units Per Month

Delivery Time
1 Months

About UV Flatbed RJ2513FR Hybrid Printer

The elite UV Flatbed RJ2513FR Hybrid Printer, manufactured in India, is the crowning achievement in industrial printing. Equipped with invincible Ricoh GEN5/GEN6 printhead technology, it supports high-speed, automatic, multi-shift operations. Its robust hybrid design enables printing on both rigid and flexible materials, accommodating media up to 100mm thick. This classic model offers color precision with CMYK + white + optional varnish, and renowned durability with 30,000+ hour UV LED lamps. The RJ2513FR consistently earns favorable reviews for superior performance, accuracy, and promotion of seamless, high-quality print production.

Versatile Industrial Applications and Media Support

The UV Flatbed RJ2513FR Hybrid Printer stands out in both plant and commercial settings. It is engineered for high-volume usage and supports a variety of applications including glass, wood, PVC, acrylic, metal, and more. This printer is ideal for advertising, signage, and bespoke manufacturing, allowing unprecedented flexibility in material and media thickness. Its capability to print on surfaces up to 100mm thick secures its position as an essential asset for serious production environments.

Reliable Supply, Shipment, and Global Reach

With reliable supply ability and efficient logistics, the UV Flatbed RJ2513FR Hybrid Printer ensures prompt shipment and delivery, safeguarding client expenditure and project timelines. Delivery times align with international standards, supporting timely setup and operation. We export to main markets across Asia, Africa, and the Middle East, responding to global demand with a streamlined process from manufacturing to delivery, making premier print technology accessible worldwide.

Technical Specification of UV Flatbed RJ2513FR Hybrid Printer:

Country of Origin	Made in India
Features	Panasonic Servo Motor
Usage/Application	Printing
Printer Weight	1400 Kg
Power Supply	AC 220 Volts
Printing Direction	Uni and Bi Direction
Printing Resolution	635X900 DPI 508X1200 DPI 508X1800 DPI
Printing Speed	240 SqFt / Hr
Printing Technology	Uv Inkjet
Production Mode	240 SqFt / Hr
Printhead	Ricoh Gen5
Material Thickness	Upto 100 mm Thick
Ink Type	UV LED Curable
Brand/Make	Mehta Raserjet
Model/Type	RJ 2513 FR

FAQ's of UV Flatbed RJ2513FR Hybrid Printer:

Q: How does the UV Flatbed RJ2513FR Hybrid Printer accommodate different media types?

A: The RJ2513FR supports both rigid and flexible materials, such as glass, wood, PVC, acrylic, and metal, with a media thickness capacity of up to 100 mm. Its hybrid design and vacuum/suction platform, along with roll-to-roll feeding, provide versatility for various printing applications.

Q: What are the advantages of using Ricoh GEN5/GEN6 printhead technology?

A: Ricoh GEN5/GEN6 printhead technology ensures high-resolution, precise, and consistent prints at industrial speeds. It supports configurations from two up to eight printheads, enabling scalable performance for demanding commercial tasks.

Q: Where is the UV Flatbed RJ2513FR Hybrid Printer manufactured?

A: This model is proudly made in India and combines advanced technology with robust manufacturing quality, meeting global industrial standards.

Q: What is the delivery process for international shipments?

A: Upon order confirmation, shipment is coordinated according to export schedules. The printer is securely packaged to prevent damage during transit, and international delivery is completed within a competitive time frame to minimize client expenditure and downtime.

Q: When should the UV lamps be replaced, and what is their typical lifespan?

A: The dual UV LED lamps are engineered for a lamp life of over 30,000 hours under proper operating conditions, contributing to a low-maintenance, long-term printing solution.

Q: How can I benefit from the automatic features of the RJ2513FR?

A: Automatic height adjustment, pin registration for repeat accuracy, and advanced ARM processors ensure every project is produced efficiently, reducing manual intervention and minimizing errors, ultimately boosting productivity.
