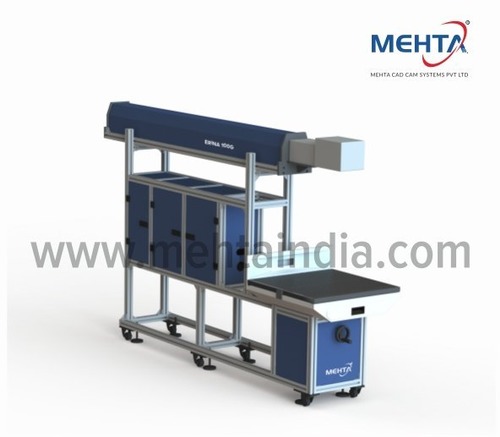

Laser Engraving Machine

Name: Laser Engraving Machine
Brand: MEHTA CAD CAM SYSTEMS PVT. LTD.
Price: 800000.00 INR
Availability: InStock

Price 800000.00 INR/ Unit

Get a Price/Quote

MOQ : 1 Unit

Laser Engraving Machine Specification

Plastic Processed
Acrylic, PVC, ABS

Lubricating System
Manual Lubrication

Accuracy
0.01 mm

Operating Temperature
5C - 40C

Control System
DSP Control System

Frame Type
Welded Steel Frame

Frequency
50/60 Hz

Voltage
220V

Machine Type
CO2 Laser Engraving & Cutting Machine

Power Rating
AC 220V 10% 50Hz / 60Hz

Features
User Friendly Interface, High Precision, Fast Engraving

Cooling System
Water Cooling

Noise Level
65 dB

Production Capacity
Up to 500 pcs/day

Drive
Belt Drive

Connectivity Options
USB, Ethernet

Model No
LE-1309

Motor Power
Stepper Motor, 120W

Product Type
Laser Engraving Machine

Technology
Laser Engraving

Power Source
Electric

Operating Type
Automatic

Power
60W / 80W / 100W (optional)

Surface Treatment
Smooth Finish

Dimension (L*W*H)
1300 x 900 x 1050 mm

Weight (kg)
265 kg

Color
White & Blue

Usage & Applications
Wood, Acrylic, Plastic, Leather, Glass, Paper, Textile Engraving & Cutting

Work Table
Honeycomb & Blade Table

Software Compatibility
CorelDRAW, AutoCAD, Photoshop

Safety Features
Interlock System, Emergency Stop Button, Cover Protection Switch

Optional Accessories
Rotary Attachment, Red Dot Pointer, Chiller

Memory Buffer
128 MB

Gross Weight
310 kg

Max Cutting Thickness
0-20 mm (material dependent)

Supported File Formats
BMP, PLT, DXF, AI, DST

Operating Humidity
5% - 80% (non-condensing)

Laser Wavelength
10.6 m

Laser Tube Type
Sealed CO2 Glass Laser Tube

Focus System
Manual / Optional Auto-focus

Display Panel
LCD Touch Screen

Max Engraving Depth
0-10 mm (material dependent)

Compression Air Assist
Yes

Laser Engraving Machine Trade Information

Minimum Order Quantity
1 Unit

Supply Ability
10 Units Per Month

Delivery Time
1 Months

About Laser Engraving Machine

We are engaged in providing the 5 ft x 10 ft Laser Engraving and Cutting Machine. We engrave customized texts, designs, numbers and designs for advertising, promotion and marketing purposes. Our offered service is widely demanded in the market due to its excellent service life, hassle-free management and easy usage. In addition to this, our provided 5 ft x 10 ft Laser Engraving and Cutting Machine finds application in offices, packaging industry and gift stationary.

Product details

Cooling Mode	Industrial Chiller
Type of Engraving Machines	Laser Engraving Machines
Condition	New
Operation Mode	Automatic
Laser Type	CO2
Compatible Software	Coreldraw,Photoshop,Auto CAD

Technical Specification

Laser Power	100W (Rf / Metal laser Tube USA) Water cooled
Laser Energy Regulator	0 to 100%
Field size (mm)	300 x 300	400 x 400	450 x 450	500 x 500	600x 600
Working Distance (mm)	350	450	500	550	660
Speed	5000 mm/sec
Motion Control	3 Axis Dynamic Galvano System Meter System
Graphic Format Supported	AI, BMP, JPG, PLT, DFX, DST, DWG
Power supply	AC 220 V 5% / 50 Hz / 60 Hz
Working Environment	15 C - 30 , Humidity : 30-80%

High-Precision and Versatility

The LE-1309 delivers sharp, precise results on several materials including acrylic, wood, leather, glass, plastic, paper, and textiles. Its adjustable cutting and engraving depth (up to 20 mm and 10 mm, respectively) are material-dependent, ensuring flexibility for every project. The welded steel frame and belt drive mechanism enhance operational stability throughout prolonged use.

Advanced Safety and User-Friendly Features

Operator safety is prioritized with an interlock system, emergency stop button, and cover protection switch. The intuitive LCD touch screen and 128 MB memory buffer simplify workflow, even for large-scale or complex designs. Optional accessories like a rotary attachment, red dot pointer, and chiller further adapt the machine to specialized tasks.

Seamless Workflow Integration

Supported file formats (BMP, PLT, DXF, AI, DST) allow direct import from CorelDRAW, AutoCAD, and Photoshop. The device supports USB and Ethernet connectivity, making it suitable for networked production environments. Manual lubrication and water cooling systems ensure consistent performance and longevity, even in continuous operating conditions.

FAQ's of Laser Engraving Machine:

Q: How does the LE-1309 CO2 Laser Engraving Machine ensure precise and consistent engraving results?

A: The LE-1309 is equipped with a DSP control system that enables high precision with an accuracy of 0.01 mm. Its robust welded steel frame and belt drive minimize vibration, while the manual or optional auto-focus feature helps maintain optimal laser beam focus for consistent depth and detail on various materials.

Q: What file formats and software are supported by the LE-1309 for design import and editing?

A: This machine supports popular file formats such as BMP, PLT, DXF, AI, and DST, allowing seamless integration with design software including CorelDRAW, AutoCAD, and Photoshop. This ensures versatile design workflow for both artistic and technical projects.

Q: Where can the LE-1309 be effectively used, and what materials can it process?

A: With its versatile capabilities, the LE-1309 is ideal for manufacturing, prototyping studios, signage production, and educational institutions. It processes wood, acrylic, plastic, leather, glass, paper, and textiles, making it suitable for both decorative and industrial applications.

Q: When is water cooling necessary, and how does it benefit the machine's performance?

A: Water cooling is essential during continuous or high-power operations to regulate the temperature of the sealed CO2 glass laser tube. This system protects the tube from overheating and extends its operational lifespan, ensuring reliable performance throughout demanding production schedules.

Q: What safety features are included in the LE-1309 to protect operators during use?

A: Operator safety is enhanced by several features: an interlock system prevents accidental laser operation, an emergency stop button halts all processes instantly, and the cover protection switch ensures the laser only activates when the safety cover is properly closed.

Q: How does the compression air assist function improve the engraving and cutting process?

A: The integrated compression air assist delivers a focused stream of air to the cutting or engraving area. This helps remove debris, prevents material scorching, and improves the quality and edge finish of cuts, especially in thicker or non-metal materials.

Q: What are the benefits of the optional accessories for the LE-1309 machine?

A: Optional accessories like the rotary attachment enable cylindrical object engraving (such as bottles), the red dot pointer enhances positioning accuracy, and the chiller provides additional cooling for extended operations, further expanding the machine's functionality and operational range.
