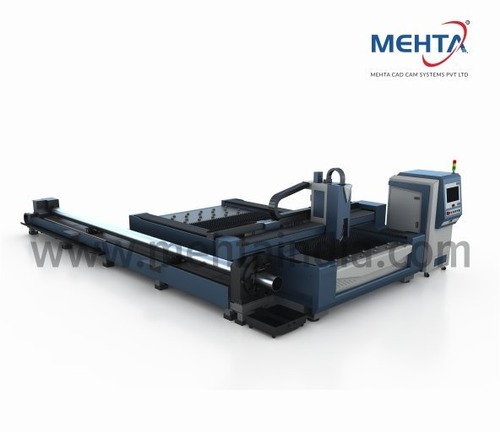

Fiber Laser Metal Cutting Machine

Name: Fiber Laser Metal Cutting Machine
Brand: MEHTA CAD CAM SYSTEMS PVT. LTD.
Price: 6500000.00 INR
Availability: InStock

Price 6500000.00 INR/ Unit

Get a Price/Quote

MOQ : 1 Unit

Fiber Laser Metal Cutting Machine Specification

Production Capacity
Can process up to 1000 sq. meters per shift (material and thickness dependent)

Motor Power
Servo Motor, up to 1500W (model dependent)

Frame Type
Heavy duty welded bed frame

Power Rating
Up to 22kW (model dependent)

Accuracy
0.05 mm

Control System
CNC Control Panel

Model No
FLM-1530/2040/2060 (options available)

Lubricating System
Automatic Lubrication

Machine Type
Flatbed Fiber Laser Cutter

Drive
Rack & Pinion or Ball Screw (model dependent)

Noise Level
<70 dB

Voltage
380V / 50Hz / 60Hz, 3 Phase

Frequency
50/60 Hz

Connectivity Options
USB, Ethernet

Plastic Processed
Not applicable (for metal cutting)

Operating Temperature
5C - 40C

Cooling System
Water cooled

Features
Precision cutting, stable performance, high speed, low maintenance, energy efficient, digital display, automatic lubricating system, safety protection, sturdy frame

Product Type
Fiber Laser Metal Cutting Machine

Technology
Fiber Laser Cutting

Power Source
Electric

Operating Type
Automatic

Power
1000W - 6000W (Depending on model)

Pressure
0.6-1.3 MPa

Surface Treatment
Polished / Coated

Dimension (L*W*H)
4100 mm x 2200 mm x 1800 mm (can vary with model)

Weight (kg)
2800 Kg (approx.)

Color
Industrial Grey & White (shown in image)

Usage & Applications
Cutting stainless steel, carbon steel, aluminum, brass, copper, and other metals in manufacturing, engineering, and fabrication industries.

Machine Life Expectancy
More than 10 years

Safe Operation Certification
CE Certified

Dust Collection System
Integrated fume extractor

Laser Source Brand
Raycus / IPG / MAX Photonics (as per configuration)

Laser Wavelength
1070 nm

Positioning Accuracy
±0.03 mm

Software Compatibility
Compatible with CAD/CAM software

Operation Language
Multi-language support

Shipping
Supplied fully assembled or semi-knocked down, export packed as per requirement

Laser Head Type
Auto-focusing fiber laser head

Graphic Format Supported
AI, DXF, PLT, LXD, etc.

Repeat Positioning Accuracy
±0.02 mm

Max Cutting Thickness
0.5mm - 25mm depending on metal and laser power

Display
Touchscreen HMI

Assist Gas Types
Oxygen, Nitrogen, Air

Emergency Stop
Available

Work Table Type
Sawtooth or Blade Table

Power Consumption
Approx. 10 kW (varies with laser power)

Cut Edge Quality
Smooth & burr-free finish

Environmental Requirements
Humidity < 70%, no condensation

Fiber Laser Metal Cutting Machine Trade Information

Minimum Order Quantity
1 Unit

Supply Ability
10 Units Per Month

Delivery Time
1 Months

About Fiber Laser Metal Cutting Machine

Fiber Laser Metal Cutting Machine is a fully automated machining center that is designed and developed to easily machine various types of materials with the help of a high-intensity laser. It is highly demanding and popular among our customers due to its high-speed working, low power consumption, and zero waste production. It is provided with an easy to use in-built control panel that makes it easier for a single operator to operate this Fiber Laser Metal Cutting Machine without the need for special training.

Product details of Fiber Laser Metal Cutting Machine:

Country of Origin	Made in India
Model Name/Number	GLORIA-BPX
Laser Power	6000W, 8000W, 10000W,12000W
Machine Type	Industrial Laser Cutting Machine
I Deal In	New Only
Automation Grade	Automatic
Brand	Mehta
Cutting Material	Mild Steel
Usage/Application	Industrial

Technical Specification of Fiber Laser Metal Cutting Machine:

Model	GLORIA BPX-1530
Working Area	5 feet X 10 feet
Laser Source	6000 / 8000 / 10000 / 12000 Watt
Laser Type	IPG / Raycus
Laser Wavelength	1080 nm
Cutting Head	PRECITEC, RAYTOOLS
Max. Cutting Speed	80 m/min
Max. Traveling Speed	140 m/min
Position Accuracy	< 0.04 mm
Minimum Line Width	< 0.12 mm
Cooling System	Water Cooling
Drives & Control	AC Servo Motor
Working Voltage	AC 420V
Weightage	10 ton

Efficient and High-Precision Cutting

Designed for industrial applications, this fiber laser cutter guarantees superior accuracy with a positioning tolerance of 0.03 mm and smooth, burr-free cut edges across diverse metals. The auto-focusing head, stable CNC control, and servo motors enable consistently high-quality results, maximizing yield per shift while reducing manual intervention.

Robust Design and Easy Operation

Built with a heavy-duty welded frame and polished/coated finish, the machine is engineered for durability. It comes equipped with an intuitive touchscreen interface offering multi-language support and digital display. The integrated fume extractor and automatic lubrication system ensure safe, low-maintenance operations suitable for continuous use in manufacturing, engineering, and fabrication workshops.

Comprehensive Software and Connectivity

Compatible with popular CAD/CAM platforms and supporting file types such as AI, DXF, PLT, and LXD, the fiber laser cutter streamlines design-to-production workflows. Multiple connectivity options-USB and Ethernet-empower seamless integration with shop floor networks and efficient data transfer for automated operation.

FAQ's of Fiber Laser Metal Cutting Machine:

Q: How does the fiber laser metal cutting machine achieve high accuracy in cutting?

A: The machine employs advanced CNC control and servo motors, ensuring positioning accuracy of 0.03 mm and repeat positioning accuracy of 0.02 mm. Its auto-focusing fiber laser head and stable drive system, available in rack & pinion or ball screw configurations, further enhance precise, reliable cuts.

Q: What materials and thicknesses can the machine cut?

A: The fiber laser cutter processes a wide variety of metals including stainless steel, carbon steel, aluminum, brass, and copper. Depending on the laser power and material type, it can cut metal sheets ranging from 0.5 mm up to 25 mm in thickness.

Q: When should I use each type of assist gas (oxygen, nitrogen, air) with this machine?

A: Assist gas selection depends on the metal type and desired cut edge quality. Oxygen is ideal for cutting thick carbon steel, nitrogen is preferred for stainless steel and aluminum for clean, oxidation-free edges, and compressed air can be used for cost-effective cutting of thinner sheets.

Q: Where can this machine be installed for optimal performance?

A: Install the fiber laser cutter in an industrial environment where temperature ranges between 5C and 40C and humidity remains below 70% without condensation. A dust-free and well-ventilated area with appropriate power (380V/50/60Hz, 3 Phase) ensures both machine longevity and operator safety.

Q: What software and file formats are compatible with this machine?

A: The cutter supports major CAD/CAM software and accepts various graphic file formats including AI, DXF, PLT, and LXD, providing seamless integration with your workflow and allowing you to import complex designs effortlessly.

Q: How does the integrated dust collection system benefit the operator?

A: The built-in fume extractor effectively removes dust and fumes produced during cutting, creating a safer and cleaner workspace. This not only protects the machine's internal components but also ensures compliance with workplace safety standards.

Q: What are the key benefits of using this automatic fiber laser cutter in metalworking industries?

A: Key benefits include exceptional cut quality, high processing speeds, energy efficiency, minimal maintenance, digital user interface, and a sturdy frame designed for long service life. Its automation and multi-language support make it user-friendly for diverse industrial applications.
