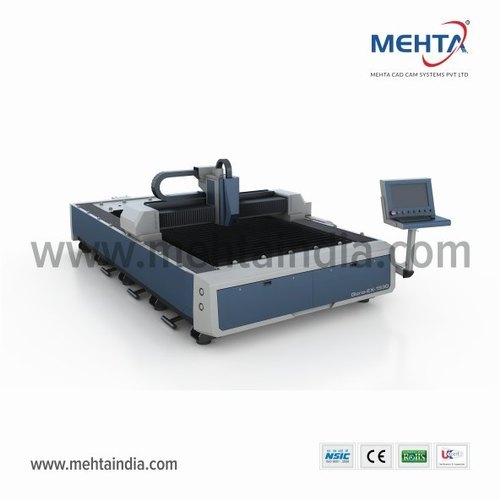

Gloria Fiber Laser Metal Cutting Machines

Send Inquiry

Request To Call Back

Gloria Fiber Laser Metal Cutting Machines

Name: Gloria Fiber Laser Metal Cutting Machines
Brand: MEHTA CAD CAM SYSTEMS PVT. LTD.
Price: 2700000.00 INR
Availability: InStock

Price 2700000.00 INR/ Unit

Get a Price/Quote

MOQ : 1 , , Unit

Gloria Fiber Laser Metal Cutting Machines Specification

Connectivity Options
USB, LAN, Ethernet

Voltage
380V (Three Phase)

Power Rating
High Power Rating for Industrial Use

Production Capacity
Upto 600 kg/hr

Frame Type
Heavy-duty Frame

Control System
CNC Control System

Model No
GL-FLC Series

Operating Temperature
0 40C

WorkingSpeed
Up to 60 m/min

Cooling System
Water Cooling

Motor Power
Servo Motor

Noise Level
75 dB

Machine Type
Fiber Laser Cutting Machine

Frequency
50/60Hz

Lubricating System
Automatic Lubrication System

Accuracy
0.02 mm

Drive
Double Drive

Features
High Precision, Low Maintenance, Fast Speed, Stable Operation

Product Type
Laser Metal Cutting Machine

Technology
Fiber Laser Cutting

Power Source
Electric

Operating Type
Automatic

Power
1500W / 2000W / 3000W / 4000W / 6000W (multiple options available)

Pressure
Standard atmospheric pressure

Surface Treatment
Polished / Finished

Dimension (L*W*H)
4300 mm x 2300 mm x 1700 mm

Weight (kg)
2800 kg

Color
Blue and White

Usage & Applications
Precision metal sheet cutting for steel, stainless steel, aluminum, copper, brass, etc.

Work Table Load
1200 Kg

Table Type
Exchanging Platform (Optional)

Software Compatibility
Compatible with AutoCAD, FastCAM, etc.

Max Sheet Thickness (SS/MS)
Up to 30mm (Based on power configuration)

Repeat Positioning Accuracy
0.015 mm

Laser Source Brand
Raycus/IPG/Max Photonics (Optional)

Safety System
Full Enclosed Cover, Smoke Extraction

Operational Language
Multi-language supported

Human Machine Interface
Intelligent Touch Panel

Laser Wavelength
1064 nm

Assistant Gas
O2, N2, Air

Environment Requirements
Dust-Free, Proper Ventilation

Cutting Head
Auto Focus, Raytools/Precitec Optional

Supported File Formats
DXF, AI, PLT, LXD, G Code

Gloria Fiber Laser Metal Cutting Machines Trade Information

Minimum Order Quantity
1 , , Unit

Supply Ability
10 Units Per Month

Delivery Time
1 Months

About Gloria Fiber Laser Metal Cutting Machines

Introducing Gloria Fiber Laser Metal Cutting Machineswhere ineffable precision meets grandiose performance. Featured with world-leading Raycus/IPG/Max Photonics laser sources and auto-focus cutting head, these cost-effective machines deliver instant savings and first-class accuracy (0.02 mm). Capable of handling up to 30mm sheets of stainless or mild steel, theyre engineered for swift, stable, and high-production metal fabrication. Experience seamless connectivity, intelligent controls, multi-language support, and robust safety with a fully enclosed design. Glorias advanced fiber laser technology assures superior sheet-cutting for a spectrum of metals, offering unparalleled quality with minimal maintenance.

Unmatched Features and Versatile Industrial Application

Gloria Fiber Laser Metal Cutting Machines are engineered with high-precision positioning, automatic lubrication, and full-enclosed safety features, making them the featured choice for heavy-duty industrial use. Powered by Raycus/IPG/Max sources, they deliver swift, polished cuts up to 30mm on stainless steel, carbon steel, copper, and more. With compatibility for major CAD/CAM software, these machines are ideal for engineering workshops, fabrication plants, and large-scale manufacturing, ensuring a grandiose edge in productivity and quality.

Efficient Dispatching and Convenient Payment Terms

Gloria Fiber Laser Metal Cutting Machines offer reliable dispatching and prompt exchange, bolstered by streamlined logistics support. Customers benefit from flexible payment terms and transparent processes. Machines are typically dispatched within a few weeks post-confirmation, ensuring minimal waiting and maximum operational uptime. Available across the main domestic market in India, Gloria stands out as a trusted exporter, importer, manufacturer, and supplier, dedicated to facilitating timely delivery and excellent exchange options for industrial clients.

Product details

Model	GLORIA-CX 1530
Working Area	5 feet X 10 feet
Laser Source	1000 / 1500 / 2000 Watt
Laser Type	IPG / Raycus
Laser Wavelength	1080 nm
Cutting Head	RAYTOOLS
Max. Cutting Speed	40 m/min
Max. Traveling Speed	120 m/min
Position Accuracy	< 0.04 mm
Minimum Line Width	< 0.12 mm
Cooling System	Water Cooling
Drives & Control	AC Servo Motor
Working Voltage	AC 420V
Weightage	5.5 ton

FAQs of Gloria Fiber Laser Metal Cutting Machines:

Q: How precise are the Gloria Fiber Laser Metal Cutting Machines?

A: Gloria machines deliver high precision with repeat positioning accuracy of 0.015 mm and cutting accuracy up to 0.02 mm, making them suitable for detailed metal fabrication.

Q: What materials can be processed with Gloria Fiber Laser Machines?

A: These machines can efficiently cut stainless steel, mild steel, aluminum, copper, and brass, accommodating sheets up to 30mm thick depending on the power configuration.

Q: When and how is the product dispatched after order confirmation?

A: Dispatching time typically ranges from a few days to several weeks based on customization and logistics, with reliable exchange and delivery support throughout India.

Q: Where are Gloria Fiber Laser Machines most commonly used?

A: They are featured in engineering workshops, metal fabrication units, manufacturing plants, and industries requiring precision sheet metal cutting on a large scale.

Q: What are the main advantages of using this machine?

A: The advantages include instant cost savings, low maintenance, high cutting speed, superior safety features, software compatibility, and robust operational stability for first-class results.

Q: How does the user interface enhance operational convenience?

A: The intelligent touch panel and multi-language support facilitate easy operation, making programming and monitoring accessible for users of all skill levels.
