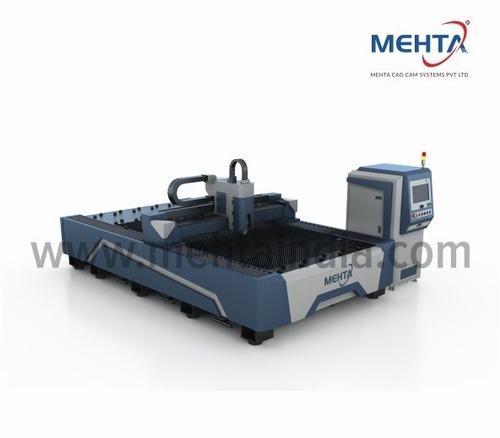

Fiber Laser Metal Cutting Machine Gloria CX 1530

Name: Fiber Laser Metal Cutting Machine Gloria CX 1530
Brand: MEHTA CAD CAM SYSTEMS PVT. LTD.
Price: 3200000.00 INR
Availability: InStock

Price 3200000.00 INR/ Unit

Get a Price/Quote

MOQ : 1 , , Unit

Fiber Laser Metal Cutting Machine Gloria CX 1530 Specification

Machine Type
Laser Cutting Machine

Control System
CNC Controller

Connectivity Options
USB, LAN

Power Rating
As per Laser Source

Voltage
380V 3-Phase

Model No
CX 1530

Accuracy
0.02 mm

Motor Power
Servo Motor (as per configuration)

Cooling System
Water Cooling Chiller

Lubricating System
Automatic Lubrication

Noise Level
75 dB

Operating Temperature
0C to 40C

Features
High precision, energy-saving, stable performance, low maintenance

Frequency
50/60 Hz

Drive
Rack and Pinion

Frame Type
Heavy Duty Welded Bed

Production Capacity
Variable as per power and material

Product Type
Fiber Laser Metal Cutting Machine

Technology
Fiber Laser Cutting

Power Source
Electric

Operating Type
Automatic

Power
1000W to 6000W (optional)

Pressure
0.6-0.8 MPa

Surface Treatment
Paint Coated

Dimension (L*W*H)
4500 mm x 2200 mm x 1750 mm

Weight (kg)
2200 kg

Color
Blue & White

Usage & Applications
Precision cutting of stainless steel, carbon steel, aluminium, brass & copper sheets

Laser Source Brand
Raycus/IPG/Max (optional)

Supported File Format
DXF, PLT, AI, Gerber, etc.

Cutting Thickness (Stainless Steel)
Up to 10 mm (depends on laser power)

Operational Interface
Touchscreen HMI

Focus System
Automatic Focusing

Max Sheet Size
1500 mm x 3000 mm

Cutting Thickness (Mild Steel)
Up to 20 mm (depends on laser power)

Electrical Protection
Overload & Short Circuit Protection

Air Requirement
Clean, dry compressed air

Max Acceleration
1.0 G

Main Material
Carbon steel + Aluminium alloy parts

Auto Height Tracking
Yes

Assist Gas
N2, O2, Air

Work Table Type
Sawtooth/Blade table, Optional

Repeat Positioning Accuracy
±0.02 mm

Fiber Laser Metal Cutting Machine Gloria CX 1530 Trade Information

Minimum Order Quantity
1 , , Unit

Supply Ability
10 Units Per Month

Delivery Time
1 Months

About Fiber Laser Metal Cutting Machine Gloria CX 1530

The Gloria CX 1530 Fiber Laser Metal Cutting Machine represents the elite standard in precision engineering. Famed for its ineffable accuracy of 0.02 mm and robust heavy-duty welded bed, this must-have CNC laser cutter is the preeminent choice for manufacturers requiring unmatched performance. With a grab-worthy cutting area of 1500 mm x 3000 mm, auto focus, and options for top-tier Raycus, IPG, or Max laser sources, it delivers clean, consistent cuts up to 20 mm on mild steel and 10 mm on stainless steel. Experience stable, energy-saving operation with advanced overload and short-circuit protection, intuitive touchscreen HMI, automatic lubrication, and versatile file compatibility-crafted for efficiency and enduring reliability.

Versatile Applications Across Multiple Industries

The Gloria CX 1530's application method utilizes advanced fiber laser cutting technology for precise, automated operation. Its area of application spans precision sheet metal fabrication, enabling reliable cutting of stainless steel, carbon steel, aluminium, brass, and copper. Application places include industrial manufacturing units, fabrication shops, sign-making companies, and machinery workshops. Ideal for exporters, importers, and suppliers, this machine ensures high-quality, repeatable cuts that meet the stringent demands of diverse industrial sectors throughout India and international markets.

Proficient Supply, Certifications, and Sample Policy

Backed by robust supply ability, the Gloria CX 1530 is ready to cater to both domestic and export markets with strict adherence to international packaging standards. Each unit is carefully packed for goods transport in accordance with industry norms for safety and reliability. Certified for performance and safety, the machine's supply chain ensures seamless global reach. Sample policy options are available, providing potential buyers with the assurance to evaluate the machine's efficacy before purchase.

Product details

Model	GLORIA-CX 1530
Working Area	5 feet X 10 feet
Laser Source	1000 / 1500 / 2000 Watt
Laser Type	IPG / Raycus
Laser Wavelength	1080 nm
Cutting Head	RAYTOOLS
Max. Cutting Speed	40 m/min
Max. Traveling Speed	120 m/min
Position Accuracy	< 0.04 mm
Minimum Line Width	< 0.12 mm
Cooling System	Water Cooling
Drives & Control	AC Servo Motor
Working Voltage	AC 420V
Weightage	5.5 ton

FAQ's of Fiber Laser Metal Cutting Machine Gloria CX 1530:

Q: How does the automatic focusing system enhance cutting efficiency in the Gloria CX 1530?

A: The automatic focusing system in the Gloria CX 1530 continually adjusts the focal point, optimizing laser intensity for different material thicknesses. This ensures consistent cutting quality, reduces manual adjustments, and enhances overall process efficiency for various metals.

Q: What file formats are supported for importing cutting designs?

A: The machine supports multiple file formats including DXF, PLT, AI, Gerber, and more, allowing users versatile options for importing complex designs directly from popular design software suites.

Q: When is maintenance required and what are the standard procedures?

A: Routine maintenance is minimal thanks to the automatic lubrication and advanced cooling system. Cleaning optics and checking lubrication levels periodically ensures sustained accuracy and longevity. Maintenance frequency depends on usage intensity and material types.

Q: Where can the Gloria CX 1530 be installed?

A: The Gloria CX 1530 is suitable for installation in industrial workshops, fabrication units, sheet metal processing plants, and manufacturing facilities that require high-volume, precision metal cutting.

Q: What are the benefits of using assist gases like nitrogen, oxygen, and air in this laser cutter?

A: Assist gases facilitate high-quality cuts-nitrogen helps prevent oxidation for clean edges, oxygen improves cutting speed on thick materials, and compressed air supports cost-effective, efficient processing for lighter metals.

Q: How does the overload and short circuit protection system contribute to operational safety?

A: The integrated electrical protection system promptly detects overloads and short circuits, automatically safeguarding critical components and reducing the risk of equipment damage or operator injury.

Q: What is the supply ability and how is the machine delivered to export markets?

A: The manufacturer maintains strong supply capability, efficiently catering to large-scale demands. The machines are packaged to international standards and shipped through trusted goods transport partners, ensuring secure and timely delivery worldwide.
