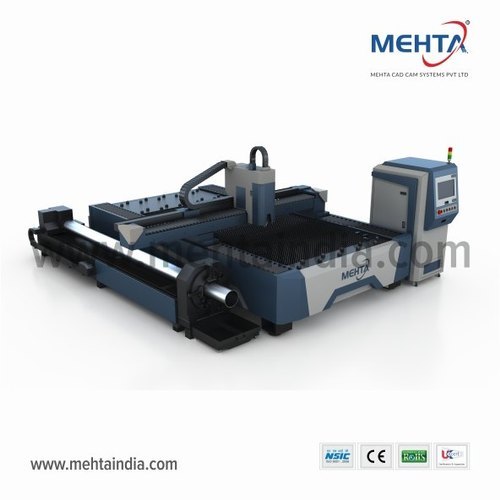

Fiber Laser Metal Cutting Machine Gloria CX 1530 R3

Name: Fiber Laser Metal Cutting Machine Gloria CX 1530 R3
Brand: MEHTA CAD CAM SYSTEMS PVT. LTD.
Price: 4000000.00 INR
Availability: InStock

Price 4000000.00 INR/ Unit

Get a Price/Quote

MOQ : 1 , , Unit

Fiber Laser Metal Cutting Machine Gloria CX 1530 R3 Specification

Lubricating System
Automatic Lubrication

Power Rating
Up to 6000W

Model No
CX1530 R3

Production Capacity
Up to 2000 kg / day

Connectivity Options
USB, LAN

Cooling System
Water Cooling

Machine Type
CNC Fiber Laser Cutter

Control System
CypCut Controller

Noise Level
Low

Features
High Precision, High Efficiency, Stable Performance, Eco-Friendly

Frequency
50-60 Hz

Accuracy
0.03 mm

Operating Temperature
0C ~ 40C

Voltage
380V 50Hz /60Hz

Frame Type
Heavy Duty Welded Frame

Drive
Dual Drive Gantry Structure

Motor Power
Servo Motor Drive

Product Type
Fiber Laser Metal Cutting Machine

Technology
Fiber Laser Technology

Power Source
Electric

Operating Type
Automatic

Power
2000W / 3000W / 4000W / 6000W (options available)

Pressure
0.6-1.3 MPa

Surface Treatment
Polished / Laser Processed

Dimension (L*W*H)
4600 mm x 2300 mm x 1350 mm

Weight (kg)
2300 kg

Color
Standard Industrial White & Blue

Usage & Applications
Metal Sheet, Stainless Steel, Carbon Steel, Aluminum, Brass, Copper

Laser Source Brand
Raycus / IPG / MAX (as per configuration)

Controller Interface
Touch Screen + Physical Buttons

Safety
Protective Enclosure, Laser Class 4

Position Repeat Accuracy
±0.02 mm

Max Sheet Size
1500 mm x 3000 mm

Maintenance
Easy Access and Tool-less Service Panels

Cutting Head
Auto-Focus Cutting Head (Raytools/WSX choice)

Max Acceleration
1.0 G

Table Type
Fixed Table

Supported File Formats
DXF, PLT, AI, LXD, Gerber

Working Environment Humidity
<95% non-condensing

Cutting Thickness (Stainless Steel)
Up to 8 mm

Material Loading Mode
Manual / Optional Auto Loader

Power Consumption
7-12 kW (depends on configuration)

Software Compatibility
Windows 7/8/10

Cutting Thickness (Mild Steel)
Up to 20 mm

Assist Gas Types
Oxygen, Nitrogen, Air

Service Support
On-site Installation & Training

Fiber Laser Metal Cutting Machine Gloria CX 1530 R3 Trade Information

Minimum Order Quantity
1 , , Unit

Supply Ability
10 Units Per Month

Delivery Time
1 Months

About Fiber Laser Metal Cutting Machine Gloria CX 1530 R3

Product details

Condition	New
Model Name/Number	GLORIA-CX 1530 R3
Model	Gloria
Capacity	1000w, 1500w, 2000w
Laser Power	Fiber Laser
Machine Type	Industrial
Automation Grade	Automatic
Autofocus	Yes
Brand	Mehta
Cutting Material	Mild Steel
Automatic Grade	Automatic
Country of Origin	Made in India

Technical Specification

Model	GLORIA-CX 1530 R3
Working Area	5 feet X 10 feet
Laser Source	1000 / 1500 / 2000 Watt
Laser Type	IPG / Raycus
Laser Wavelength	1080 nm
Cutting Head	RAYTOOLS
Max. Cutting Speed	40 m/min
Max. Traveling Speed	120 m/min
Position Accuracy	< 0.04 mm
Minimum Line Width	< 0.12 mm
Cooling System	Water Cooling
Drives & Control	AC Servo Motor
Working Voltage	AC 420V
Weightage	5.5 ton

Reliable Laser Source Choices

Select from leading laser source brands-Raycus, IPG, or MAX-to achieve optimal cutting results tailored to your production needs. Configuration options ensure compatibility with a range of materials and thicknesses, enabling flexible operation and scalability for both small-scale and large-volume manufacturing environments.

Precision Engineering and Accuracy

With position repeat accuracy of 0.02 mm and built on a heavy-duty welded frame, the CX 1530 R3 guarantees precise cuts on every job. Automated features like auto-focus cutting head and servo motor drive technology further enhance performance, making intricate or repeated patterns simple to achieve with minimal manual intervention.

User-Friendly Control and Connectivity

The integrated CypCut controller combines a responsive touchscreen and physical buttons, ensuring intuitive operation. Compatibility with Windows 7/8/10 operating systems and connectivity via USB or LAN streamlines workflow, while easy-to-load manual or optional auto loading facilitates smooth production transitions.

FAQ's of Fiber Laser Metal Cutting Machine Gloria CX 1530 R3:

Q: How does the Gloria CX 1530 R3 ensure safety during operation?

A: The machine features a full protective enclosure and is classified as Laser Class 4, meeting rigorous safety standards. These measures help shield operators from direct laser exposure during high-powered cutting processes.

Q: What is the process for loading materials into the machine?

A: The standard configuration allows manual material loading, but an optional auto loader is available for improved efficiency. The table is fixed, offering stability for precise sheet placement throughout the cutting process.

Q: Which file formats are supported for metal cutting designs?

A: The CX 1530 R3 supports multiple file formats, including DXF, PLT, AI, LXD, and Gerber, facilitating smooth transfer of complex designs from popular CAD software.

Q: What materials and thicknesses can the machine cut?

A: It can cut mild steel up to 20 mm thick and stainless steel up to 8 mm, in addition to other metals such as aluminum, brass, and copper-making it suitable for diverse applications.

Q: Where can the CX 1530 R3 be installed, and what are its environmental requirements?

A: Intended for industrial environments, it operates effectively in temperatures from 0C to 40C and relative humidity below 95% non-condensing. It runs on a 380V power supply at 50/60 Hz.

Q: What benefits does the automatic lubrication and water cooling system provide?

A: Automatic lubrication ensures consistent machine performance and reduces maintenance, while the water cooling system protects the laser source, helping maintain high precision and longevity of components.

Q: What service and support options are available?

A: The manufacturer offers on-site installation and training for new users. Maintenance is simplified through easy-access, tool-less service panels, ensuring minimal downtime and efficient after-sales support.
