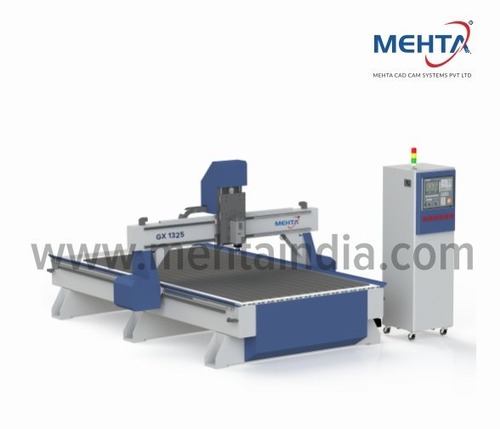

      GX 1325 CNC Engraving Machine

      GX 1325 CNC Engraving Machine

      945000.00 INR/Unit

      Product Details:

      X

      Price And Quantity

      • 1 Unit
      • 945000.00 INR/Unit

      Trade Information

      • 10 Unit Per Month
      • 1 Months

      Product Description

      Product details

      Cutting Tool Diameter

      3 to 20 mm

      Automatic Grade

      Automatic

      Features

      Self-Lubrication System,Spindle Cooling System

      Brand

      Mehta

      Model Number

      GX 1325

      Spindle Speed

      18000 RPM

      Weight

      1260 Kg

      Working Area

      1300 x 2500 x 250 mm

      Operating System

      High Speed PCI Base Controller

      Table Structure

      Heavy Duty Rigid Mild Steel Frame Structure

      Power Supply

      AC 440V/3PH

      X and Y Axis Traveling

      Rack Pinion (Made in Taiwan)

      Spindle

      6 KW Air Cooled (HSD Italian)

      Repeated Location

      0.020 mm

      Outer Dimension

      2161 x 3160 x 1000 mm

      Maximum Traveling Speed

      30 mtr/min

      Driving System

      AC Servo Motor (JAPAN)

       Technical Specification

      Models

      GX - 1530

      Outer Dimension

      2361 x 3660 x 1000 mm

      Working Area (X, Y, Z)

      1500 x 3000 x 250 mm

      Spindle

      6 KW Air Cooled (HSD Italian)

      Spindle Speed

      18000 RPM

      Maximum Traveling Speed

      30 mtr/min

      Cutting Tool Diameter

      Ø3 to Ø20 mm

      X and Y Axis Traveling

      Rack Pinion (Made in Taiwan)

      Table Structure

      Heavy Duty Rigid Mild Steel Frame Structure

      Repeated Location

      0.020 mm

      Operating System

      High Speed PCI Base Controller

      Driving System

      AC Servo Motor (JAPAN)

      Weight

      1450 Kg

      Power Supply

      AC 440V/3PH

      Above specifications are subject to change without prior notice


      MEHTA CAD CAM SYSTEMS PVT. LTD.
